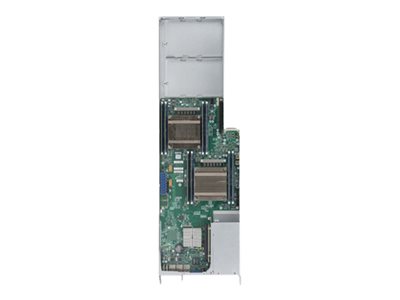

Supermicro SuperServer F618R3-FTL - rack-mountable - no CPU - 0 GB - no HDD

Supermicro SuperServer F618R3-FTL - rack-mountable - no CPU - 0 GB - no HDD

  • Price:
    $6,302.99
  • Availability:
  • Mfr #:  SYS-F618R3-FTL
  • UNSPSC #:  43211501
  • Item #:  003129423
  • Add to Shopping List
  • cnet cat code #:  100104
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
Included Accessories 8 x riser cards, 16 x CPU heatsinks
Cables Included Serial ATA cable (16 pcs.)
Compliant Standards Plug and Play, APM 1.2, RoHS, ACPI 4.0
Networking
Ethernet Ports 2 x Gigabit Ethernet
Ethernet Controller 2 x Intel I210
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol IPMI 2.0
Remote Management Controller Aspeed AST2400
Features KVM over IP support
Dimensions & Weight
Width 17.6 in
Depth 29 in
Height 7 in
Weight 150 lbs
Cluster
Shared Storage Power Supply 4 redundant hot plug power supplies
Power Supply Capacity 4x1620 Watt
Hard Drive
Type No HDD
Graphics Controller
Graphics Processor ASPEED AST2400
Video Interfaces VGA
Monitor
Monitor Type None.
Storage Controller
Type 1 x RAID
Controller Interface Type SATA 6Gb/s
Channel Qty 2
RAID Level RAID 0, RAID 1
Manufacturer Warranty
Service & Support Limited warranty - parts - 1 year Limited warranty - labor - 3 years
Environmental Parameters
Min Operating Temperature 50 F
Max Operating Temperature 95 F
Humidity Range Operating 8 - 90% (non-condensing)
General
Type Cluster (8 nodes)
Product Form Factor Rack-mountable - 4U
Server Scalability 2-way
Cluster Configuration 8 - computing node
Color Black
Processor / Chipset
CPU No CPU
Max CPU Qty 2
CPU Upgradability Upgradable
CPU Socket LGA2011-v3 Socket
Chipset Type Intel C612
Expansion / Connectivity
Bays 2 (total) / 2 (free) x internal 3.5"
Slots 2 (total) / 2 (free) x CPU 8 (total) / 8 (free) x DIMM 288-pin 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile
Interfaces 2 x LAN (Gigabit Ethernet) 1 x management 2 x USB 3.0 1 x VGA
Power
80 PLUS Certification 80 PLUS Platinum
Operating System / Software
OS Provided No operating system
RAM
Installed Size 0 GB / 1 TB (max)
Technology DDR4 SDRAM - ECC
Form Factor DIMM 288-pin
Slots 8 (total) / 8 (empty)
Features Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM)
RAM Supported 1 TB 3DS Load-Reduced - ECC 512 GB registered - ECC
Optical Storage
Type No optical drive
