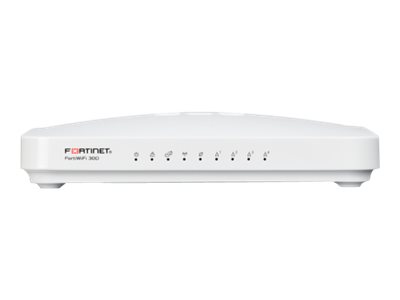

Fortinet FortiWiFi 30D - security appliance - with 3 years FortiCare 8x5 Enterprise Bundle
Fortinet FortiWiFi 30D - security appliance - with 3 years FortiCare 8x5 Enterprise Bundle
- Price:
$1,177.99
- Availability:
- Mfr #: FWF-30D-BDL-871-36
- UNSPSC #: 43222501
- Item #: 003844749
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
| Compliant Standards | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B |
Networking
| Form Factor | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Switching Protocol | Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPSec |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Firewall throughput (1518-byte packet size): 800 Mbps ¦ Firewall throughput (512-byte packet size): 800 Mbps ¦ Firewall throughput (64-byte packet size): 800 Mbps ¦ Firewall latency (64-byte UDP): 8 µs ¦ Firewall throughput: 1.2 Mpps ¦ VPN throughput (IPSec): 350 Mbps ¦ VPN throughput (SSL): 25 Mbps ¦ Antivirus throughput: 30 Mbps ¦ IPS throughput (HTTP): 150 Mbps ¦ SSL inspection throughput: 30 Mbps ¦ NGFW throughput: 18 Mbps |
| Capacity | Maximum number of concurrent sessions: 200000 ¦ New sessions per second: 3500 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 20 ¦ Client to gateway IPSec VPN tunnels: 250 ¦ Concurrent SSL VPN users: 80 ¦ Number of FortiAP devices: 2 ¦ Number of FortiClient devices: 10 ¦ Number of FortiToken devices: 20 |
| Status Indicators | Port transmission speed, power, status, WLAN, link/activity, USB |
| Features | Firewall protection, switching, manageable, Intrusion Prevention System (IPS), wall mountable, IPSec Virtual Private Network (VPN), web threat protection, 3G/4G USB Dongle Support, application filtering, anti-virus protection, advanced persistent threat (APT) |
| Encryption Algorithm | SSL |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Security appliance |
| Bundled Services | 3 years FortiCare 8x5 Enterprise Bundle |
| Built-in Devices | LED panel |
| Width | 7.2 in |
| Depth | 5.2 in |
| Height | 1.4 in |
| Weight | 10.58 oz |
Processor / Memory / Storage
| Processors Installed | 1 x Fortinet FortiASIC SOC2 |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T - RJ-45 (WAN) ¦ 4 x 1000Base-T - RJ-45 ¦ 1 x USB - Type A ¦ 1 x management (USB) - Type B |
Power
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 14 Watt |
Antenna
| Antenna | Internal |
Software / System Requirements
| OS Provided | FortiOS 5 |
| Software Included | FortiExplorer |
