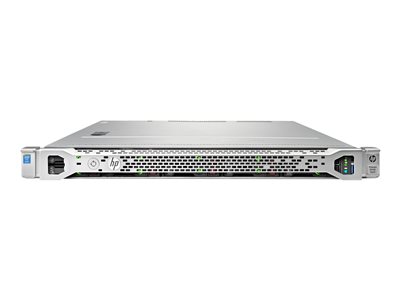

HPE ProLiant DL160 Gen9 - rack-mountable - Xeon E5-2609V4 1.7 GHz - 8 GB
HPE ProLiant DL160 Gen9 - rack-mountable - Xeon E5-2609V4 1.7 GHz - 8 GB
- Price:
$1,514.99
- Availability:
- Mfr #: 867445-S01
- UNSPSC #: 43211501
- Item #: 004184493
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Cache Memory
| Installed Size | L3 cache - 20 MB |
| Cache Per Processor | 20 MB |
Miscellaneous
| Compliant Standards | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438 |
| Manufacturer Selling Program | HP Smart Buy |
Networking
| Interface (Bus) Type | PCI Express 2.0 x2 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | HP 361i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 4 |
| Features | Wake on LAN (WoL), PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
Dimensions & Weight
| Width | 17.1 in |
| Depth | 23.9 in |
| Height | 1.7 in |
| Weight | 22.05 lbs |
Hard Drive
| Type | No HDD |
Graphics Controller
| Graphics Processor | Matrox G200eH2 |
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Storage Controller
| Type | 2 x RAID |
| Controller Interface Type | SAS |
| Storage Controller Name | HP H240 Smart Host Bus Adapter |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5 |
Manufacturer Warranty
| Service & Support | Limited warranty - parts - 3 years ¦ Limited warranty - parts and labor - 1 year - on-site - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Sound Emission | 34.2 dBA |
General
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 8 |
Processor / Chipset
| CPU | Intel Xeon E5-2609V4 / 1.7 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Smart Cache |
| CPU Socket | FCLGA2011-v3 Socket |
| Chipset Type | Intel C612 |
Expansion / Connectivity
| Bays | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Interfaces | 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - RJ-45 ¦ 1 x VGA ¦ 1 x USB 2.0 (1 in front) ¦ 3 x USB 3.0 (2 rear, 1 internal) |
Power
| Power Provided | 900 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 92% |
Operating System / Software
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris |
RAM
| Memory Speed | 1866 MHz |
| Installed Size | 8 GB / 512 GB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 1866 MHz |
| Rated Memory Speed | 2400 MHz |
| Memory Specification Compliance | PC4-19200 |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 15 (empty) |
| Features | Registered, Online Spare Memory, quad channel memory architecture, HP SmartMemory |
| Configuration Features | 1 x 8 GB |
| RAM Supported | 512 GB registered - Advanced ECC ¦ 1 TB Load-Reduced - Advanced ECC |
Optical Storage
| Type | No optical drive |
