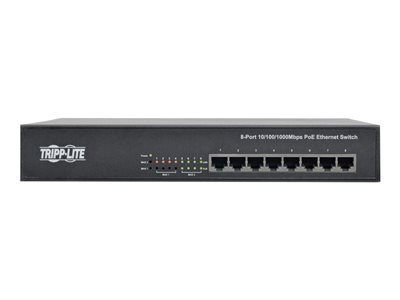

The NG8POE 8-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace.
Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this energy-efficient switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 140W (up to 70W per port bank). Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.
This unmanaged switch features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It's plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.
The NG8POE supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. The detachable five-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.
- Product Description Tripp Lite 8Port Gigabit Ethernet Switch Rackmount Unmanaged w/PoE Metal 1U - switch - 8 ports - unmanaged - rack-mountable
- Device Type Switch - 8 ports - unmanaged
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE) PoE+
- PoE Budget 140 W
- Performance Switching capacity: 16 Gbps
- Jumbo Frame Support 9216 bytes
- Features Auto-negotiation, auto-uplink (auto MDI/MDI-X)
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Power AC 100 - 240 V (50/60 Hz)
- Dimensions (WxDxH) 11 in x 7.1 in x 1.7 in
- Weight 4.1 lbs
- Color Black
- Manufacturer Warranty 5-year warranty
|
