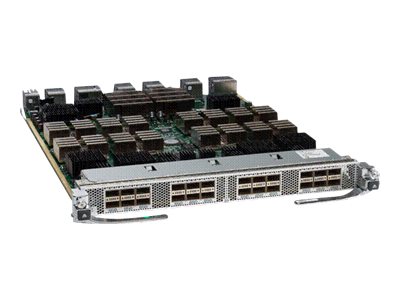

The Cisco MDS 9700 24-port Fiber Channel over Ethernet (FCoE) module provides Cisco Unified Fabric connectivity to the SAN core. It empowers midsize and large enterprises, that are rapidly deploying cloud-scale applications with Inter-Switch Link (ISL) consolidation and exceptional investment protection for their SANs. The data center fabric is already using 40-Gbps connectivity in the core for more efficient convergence, higher performance, and lower total cost of ownership (TCO). This capability can now be extended to the SAN core. You can extend the benefits of FCoE beyond the access layer to the data center core with a full line-rate FCoE module.
- Product Description Cisco MDS 9700 Module - switch - 24 ports - managed - plug-in module
- Device Type Switch - 24 ports - managed
- Enclosure Type Plug-in module
- Subtype Fibre Channel
- Ports 24 x 40 Gigabit Ethernet / FCoE QSFP+
- Remote Management Protocol SNMP 3, SMI-S, SSH-2, CLI, SFTP
- Features Trunking, Syslog support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Port Security, Transparent (N_Port ID Virtualization - NPIV) mode support, Class of Service (CoS), Converged Enhanced Ethernet (CEE), FCoE Initialization Protocol (FIP), Priority-Based Flow Control (PFC), Cisco Inter-Switch Link (ISL), Fibre Channel Forwarder (FCF), Fabric-Device Management Interface (FDMI), Role-Based Access Control (RBAC), Power-on self-test (POST), Authentication, Authorization and Accounting (AAA)
- Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1Qaz
- Dimensions (WxDxH) 15.9 in x 21.8 in x 1.7 in
- Weight 17 lbs
- Manufacturer Warranty 1-year warranty
|
