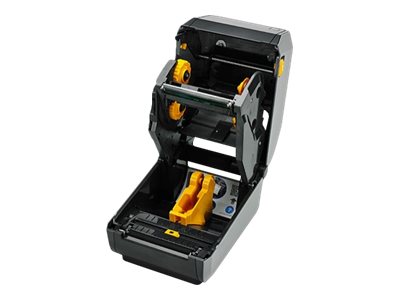

Zebra ZD620 - label printer - B/W - thermal transfer

Zebra ZD620 - label printer - B/W - thermal transfer

  • Price:
    $584.01
  • Availability:
  • Mfr #:  ZD62042-T01F00EZ
  • UNSPSC #:  43212103
  • Item #:  005174760
  • Add to Shopping List
  • cnet cat code #:  10030105
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
Included Accessories 2 core adapters, ribbon take-up cores
Cables Included USB cable
Features Power Factor Correction (PFC)
Compliant Standards FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893
Networking
Networking Print server
Dimensions & Weight
Width 8 in
Depth 10.5 in
Height 7.6 in
Weight 5.51 lbs
Environmental Standards
ENERGY STAR Yes
Printer
Print Speed Up to 203 ppm - B/W - 203 dpi
Connectivity Technology Wireless
Interface USB 2.0, LAN, serial, USB host, Bluetooth 4.1, Bluetooth LE
Max Resolution (B&W) 203 dpi
Language Simulation ZPL II, EPL2, ZBI, Extensible Mark-up Language (XML)
Features Realtime clock, Black Mark sensor, gap sensor, peeler
Fonts Included 16 x bitmapped ZPL II 2 x scalable ZPL 5 x expandable EPL2
Barcodes Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI
Software / System Requirements
Software Included Drivers & Utilities
Media Handling
Media Type Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels
Max Media Size Roll (4.65 in)
Media Sizes Roll (4.65 in)
Max Printing Width 4.09 in
Max Printing Length 39 in
Media Thickness Range 0.003 in - 0.0075 in
Roll Maximum Outer Diameter 5 in
Roll Core Diameter 1 in, 3 in, 1.5 in, 0.5 in, 2 in
Media Feeders 1 x manual - 1 roll - Roll (4.65 in)
Environmental Parameters
Min Operating Temperature 39.9 F
Max Operating Temperature 105.8 F
Humidity Range Operating 10 - 90% (non-condensing)
Flash Memory
Flash Memory 512 MB
General
Printer Type Label printer - thermal transfer - monochrome
Enclosure Color Gray
Expansion / Connectivity
Connections 1 x USB 2.0 - 4 pin USB Type B 1 x USB host - 4 pin USB Type A 1 x LAN - RJ-45 1 x RS-232 - 9 pin D-Sub (DB-9)
Power
Power Device Power supply
Voltage Required AC 120/230 V
Frequency Required 50/60 Hz
Power Factor Correction Yes
RAM
RAM Installed (Max) 256 MB
Technology / Form Factor SDRAM
