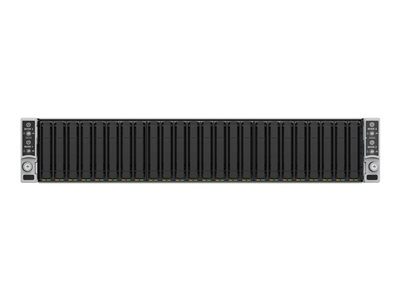

Intel Server System VRN2224BPHY6 - rack-mountable - Xeon Gold 5115 2.4 GHz - 256 GB - SSD 2 x 960 GB, SSD 256 GB, HDD 4 x 2 TB
Intel Server System VRN2224BPHY6 - rack-mountable - Xeon Gold 5115 2.4 GHz - 256 GB - SSD 2 x 960 GB, SSD 256 GB, HDD 4 x 2 TB
- Price:
$31,007.99
- Availability:
- Mfr #: VRN2224BPHY6
- UNSPSC #: 43211501
- Item #: 005853983
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Cache Memory
| Installed Size | L3 cache - 27.5 MB |
| Cache Per Processor | 13.75 MB |
Miscellaneous
| Included Accessories | 8 x CPU Heatsink, 4 x Remote Management Module Lite 2 AXXRMM4LITE2, 4 x passthrough bridge board, 4 x Intel Server Board S2600BPS |
Hard Drive (2nd)
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Manufacturer | Intel |
Networking
| Ethernet Ports | 2 x SFP+ |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
Dimensions & Weight
| Width | 3.5 in |
| Depth | 17.2 in |
| Height | 28.9 in |
Cluster
| Shared Storage Power Supply | 2 redundant hot plug power supplies |
| Power Supply Capacity | 2x2130 Watt |
Hard Drive
| Type | SSD - 2.5" |
| Capacity | 2 x 960 GB |
| Manufacturer | Intel |
Monitor
| Monitor Type | None. |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
General
| Type | Cluster (4 nodes) |
| Product Form Factor | Rack-mountable - 2U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 6 |
| Cluster Configuration | 4 x Intel Compute Module HNS2600BPS24 - computing node |
Processor / Chipset
| CPU | Intel Xeon Gold 5115 / 2.4 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 10-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket P |
| Chipset Type | Intel C622 |
Hard Drive (3rd)
| Type | HDD |
| Capacity | 4 x 2 TB |
| Interface Type | SAS |
Expansion / Connectivity
| Bays | 6 hot-swap 2.5" |
| Slots | 2 (total) / 2 (free) x PCIe 3.0 x16 |
| Interfaces | 2 x LAN (10Gigabit Ethernet) - SFP+ ¦ 2 x USB ¦ 8 x SATA |
Power
| Device Type | Power supply |
| Power Redundancy | Yes |
RAM
| Installed Size | 256 GB / 256 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2666 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 8 (empty) |
| Features | Intel Fast Memory Access, Intel Flex Memory Access |
| Configuration Features | 8 x 32 GB |
