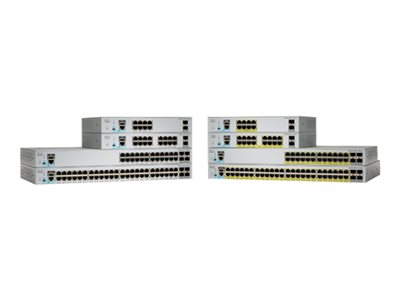

Cisco Catalyst 2960L-SM-8TS - switch - 8 ports - smart - rack-mountable

Cisco Catalyst 2960L-SM-8TS - switch - 8 ports - smart - rack-mountable

  • Price:
    $157.99
  • Availability:  In stock
  • Mfr #:  WS-C2960L-SM-8TS
  • UNSPSC #:  43222612
  • Item #:  006441921
  • Add to Shopping List
  • cnet cat code #:  10050202
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
MTBF 2,448,133 hours
Compliant Standards Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, Directive 2011/65/EU, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, USGv6
Dimensions & Weight
Width 10.6 in
Depth 8.5 in
Height 1.7 in
Weight 3.33 lbs
Manufacturer Warranty
Service & Support Limited warranty - replacement - lifetime - response time: next business day Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature 23 F
Max Operating Temperature 113 F
Humidity Range Operating 5 - 90%
Min Storage Temperature -13 F
Max Storage Temperature 158 F
Humidity Range Storage 5 - 95%
General
Device Type Switch - 8 ports - L3 - smart
Enclosure Type Desktop, rack-mountable
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 + 2 x Gigabit SFP (uplink)
Performance Switching bandwidth: 20 Gbps Forwarding bandwidth: 10 Gbps Forwarding rate: 14.88 Mpps
Capacity VLANs supported: 4094 Active VLANs: 256 VLAN IDs: 4094 IPv4 routes (static): 16 IPv6 routes (static): 16 STP instances: 64 SPAN sessions: 4
MAC Address Table Size 16000 entries
Jumbo Frame Support 10240 bytes
Routing Protocol IGMP, MLDv2, MLD
Remote Management Protocol SNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features DHCP support, auto-negotiation, BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Dynamic VLAN Support (GVRP), Class of Service (CoS), SNMP support, IGMP filtering, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
Processor ARM7: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Port status, status, PoE, link/speed
Expansion / Connectivity
Interfaces 8 x 1000Base-T RJ-45 2 x 1000Base-X SFP uplink 1 x console RJ-45 1 x console (mini-USB) Type B 1 x USB Type A
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50 - 60 Hz)
Software / System Requirements
Software Included Cisco IOS LAN Lite
