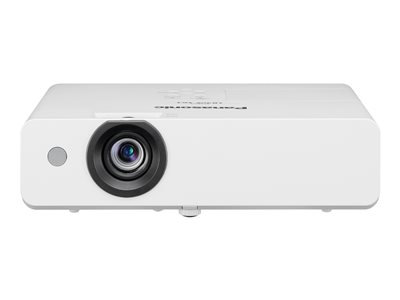

Panasonic PT-LB385U - 3LCD projector - portable
Panasonic PT-LB385U - 3LCD projector - portable
- Price:
$637.99
- Availability: In stock
- Mfr #: PT-LB385U
- UNSPSC #: 45111609
- Item #: 006457610
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Projector
| Brightness | 3800 lumens |
| Contrast Ratio | 16000:1 |
| Image Size | 29.9 in - 300 in |
| Throw Ratio | 1.48 - 1.78:1 |
| Uniformity | 85 % |
| Resolution | XGA - XGA (1024 x 768) |
| Native Aspect Ratio | 4:3 |
| Video Bandwidth | 162 MHz |
| Display Format | 1,024,000 pixels (1,280 x 800) x 3 |
| Color Support | 16.8 million colors |
| Max Sync Rate (V x H) | 85 Hz x 91 kHz |
| Lamp Type | UHM 230 Watt |
| Lamp Life Cycle | Up to 10000 hour(s) - normal mode ¦ Up to 20000 hour(s) - economic mode |
| Controls & Adjustments | Keystone correction |
| Features | High-bandwidth Digital Content Protection System (HDCP), Deep Color, PJlink, Direct Power Off, built-in closed caption decoding function, USB Viewer, USB Display, Eco Mode, Daylight View Technology Lite |
Dimensions & Weight
| Width | 13.2 in |
| Depth | 9.9 in |
| Height | 3.8 in |
| Weight | 6.61 lbs |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Sound Emission | 39 dB |
| Sound Emission (Economic Mode) | 35 dB |
General
| Device Type | 3LCD projector - 720p |
| Built-in Devices | Speaker |
| Networking | Ethernet |
Video Input
| TV System | NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60 |
| Video Interfaces | HDMI, composite video, RGB |
| Video Modes | 480p, 720p, 1080i, 1080p, 480i, 525i, 525p, 625p, 625i, 576i, 576p, 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 750/50p, 750/60p, 1125/60i, 1125/60p, 1125/50i, 1125/24p, 1125/25p, 1125/30p, 1125/50p, 1080/24sF, 1125/24sF |
Lens
| Focus Type | Manual |
| Lens Aperture | F/1.6-1.76 |
| Zoom Type | Manual |
| Zoom Factor | 1.2x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -30 / +30 |
| Horizontal Keystone Correction | -15 / +15 |
Speakers
| Type | Integrated |
| Sound Output Mode | Mono |
| Output Power / Channel | 10 Watt |
| Speakers | 1 x mixed channel |
Expansion / Connectivity
| Interfaces | 1 x HDMI input - 19 pin HDMI Type A ¦ 1 x component video / RGB / S-video input - 15 pin HD D-Sub (HD-15) ¦ 1 x RGB output - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - RCA x 2 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232C input - 9 pin D-Sub (DB-9) (management) ¦ 1 x USB (management) ¦ 1 x RGB input - 15 pin HD D-Sub (HD-15) ¦ Network - RJ-45 ¦ 1 x USB |
Dimensions & Weight (Shipping)
| Shipping Width | 17.8 in |
| Shipping Depth | 17.4 in |
| Shipping Height | 8 in |
| Shipping Weight | 13.23 lbs |
Power
| Power Source | AC |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 300 Watt |
| Power Consumption Stand by | 6 Watt |
Software / System Requirements
| Software Included | Multi Projector Monitoring & Control Software, Wireless Projector App, Presenter Light for Windows |
