Sony SRG-120DH - conference camera - with RC4-SRG Kit
Sony SRG-120DH - conference camera - with RC4-SRG Kit
- Price:
$3,341.99
- Availability: In stock
- Mfr #: SRG120DH/PAC4
- UNSPSC #: 45121506
- Item #: 005375176
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Interfaces
| Video | HDMI |
| Control Interface | RS-232C |
Miscellaneous
| Included Accessories | Remote control |
| Compliant Standards | JEITA |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 3.9 mm - 46.8 mm |
| Lens Iris | F/1.8-2.0 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 0.4 in |
| Horizontal Field of View (degree) | 71 |
Tilting
| Range (degree) | -25 to +25 |
| Speed (degree/sec) | Up to 126 |
Image Sensor
| Type | 2.1 MP Exmor CMOS 1/2.8" |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
General
| Device Type | Conference camera |
| Connectivity Technology | Wired |
| Width | 6 in |
| Depth | 6 in |
| Height | 6.1 in |
| Weight | 3.2 lbs |

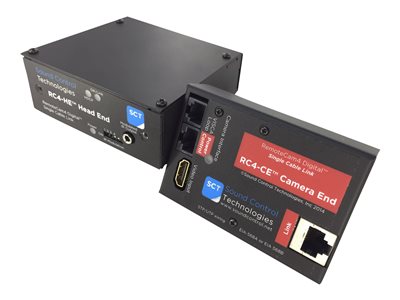

| Bundled with | RC4-SRG Kit |
Camera
| Type | Color - pan / tilt / zoom |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080/50i, 720/50p, 1080/50p, 1080/30p, 1080/25p, 720/30p, 720/25p, 1080/59.94i, 1080/59.94p, 720/59.94p |
| Digital Zoom | 12 |
| Exposure Range | 1/1 sec - 1/10000 sec |
| Minimum Illumination | 1.8 lux F1.8 - 50 IRE - high-sensitivity mode off / 30fps ¦ 3.6 lux F1.8 - 50 IRE - high-sensitivity mode off / 60fps ¦ 0.4 lux F1.8 - 50 IRE - high-sensitivity mode on / 30fps ¦ 0.9 lux F1.8 - 50 IRE - high-sensitivity mode on / 60fps |
| Digital Video Capture Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Still Image Capture Resolution | 1920 x 1080 |
| Features | Exposure compensation, manual exposure, white balance, auto exposure control, progressive scanning, Visibility enhanced wide Dynamic Range (View-DR), eXcellent Dynamic Noise Reduction, Visibility Enhancer, Automatic Tracing White (ATW), 16 preset positions, manual gain control, Wide-D technology, VISCA over IP, auto gain control |
Panning
| Range (degree) | -100 to +100 |
| Speed (degree/sec) | Up to 300 |
Expansion / Connectivity
| Ports | HDMI ¦ LAN - RJ-45 ¦ Serial RS-232 input - 8 pin mini-DIN ¦ Serial RS-232 output - 8 pin mini-DIN |
Power
| Power Requirements | DC 12 V |
| Power Device | 16.8 Watt |
