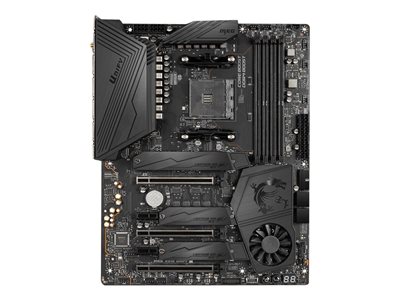

MSI MEG X570 UNIFY - motherboard - ATX - Socket AM4 - AMD X570

MSI MEG X570 UNIFY - motherboard - ATX - Socket AM4 - AMD X570

  • Price:
    $342.99
  • Availability:  In stock
  • Mfr #:  X570UNIFY
  • UNSPSC #:  43201513
  • Item #:  007476640
  • Add to Shopping List
  • cnet cat code #:  10060801
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
Included Accessories External antenna, case badge, cable labels, CORSAIR to Rainbow extension cable, 1 to 2 RGB LED extension Y cable, CORSAIR RGB LED extension cable, MSI draw pocket
Cables Included 4 x Serial ATA cable
Software Included Drivers & utilities
Width 12 in
Depth 9.6 in
Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 3066 MHz
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered Unbuffered
Features Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
LAN
Network Controller Realtek RTL8125 / Intel AX200
Network Interfaces Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax
General
Product Type Motherboard - ATX
Chipset Type AMD X570
Processor Socket Socket AM4
Max Processors Qty 1
Compatible Processors Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)
Features
BIOS Features M-Flash, MSI ClickBIOS 5
Hardware Features NVIDIA 2-way SLI Technology Support, AMD 3-way CrossFireX technology support, Clear CMOS Button, MSI Gaming Device Port, Debug LED, Game Boost, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot, AMD StoreMI technology, MSI Audio Boost HD, Zero Frozr technology, MSI Frozr Heatsink Design, 12+2+1 Phase Power Design, Secure Erase+
Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC1220
Compliant Standards High Definition Audio
Expansion / Connectivity
Expansion Slots 1 x CPU 4 x DIMM 288-pin 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 modes (with 2nd Generation Ryzen CPU); PCIe 3.0 x8/x0 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)) 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 4.0 x1
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -connectors: 2 x M.2 PCIe 4.0 -connectors: 1 x M.2
Interfaces 2 x USB 2.0 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x TOSLINK 2 x USB 3.2 Gen 1 3 x USB 3.2 Gen 2 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x LAN (2.5Gigabit Ethernet) 1 x USB-C Gen2 1 x PS/2 keyboard / mouse
Internal Interfaces 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C Gen2 - header 1 x audio - header
Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors
