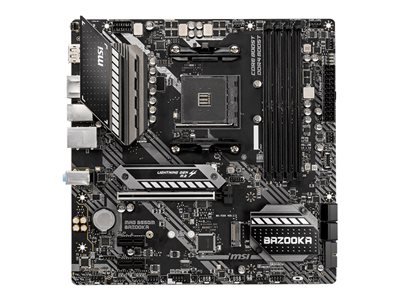

MSI MAG B550M BAZOOKA - motherboard - micro ATX - Socket AM4 - AMD B550

MSI MAG B550M BAZOOKA - motherboard - micro ATX - Socket AM4 - AMD B550

  • Price:
    $144.99
  • Availability:
  • Mfr #:  B550MBAZKA
  • UNSPSC #:  43201513
  • Item #:  008025707
  • Add to Shopping List
  • cnet cat code #:  10060402
Need Help? Contact your Zones Account Manager or call 800.408.9663
Graphics
Max Allocated RAM Size 16 GB
Miscellaneous
Included Accessories Case badge, I/O back cover
Cables Included 2 x Serial ATA cable
Software Included Drivers & utilities
Width 9.6 in
Depth 9.6 in
Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered Unbuffered
Features Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
LAN
Network Controller Realtek RTL8111HN
Network Interfaces Gigabit Ethernet
General
Product Type Motherboard - micro ATX
Chipset Type AMD B550
Processor Socket Socket AM4
Max Processors Qty 1
Compatible Processors Ryzen (supports 3rd Generation Ryzen)
Features
BIOS Features MSI ClickBIOS 5
Hardware Features MSI Audio Boost, Game Boost, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot
Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC892
Compliant Standards High Definition Audio
Expansion / Connectivity
Expansion Slots 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Interfaces 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 4 x USB 3.2 Gen 1 1 x PS/2 keyboard / mouse 2 x USB 2.0 1 x HDMI 1 x DisplayPort
Internal Interfaces 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen 1 - header 1 x audio - header 1 x serial - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
