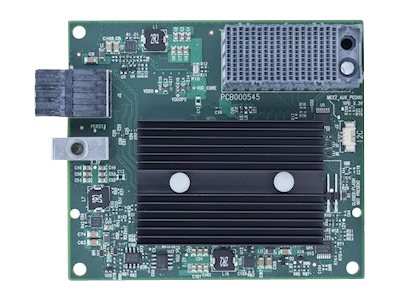

The Flex System IB6132 2-port FDR InfiniBand Adapter delivers low latency and high bandwidth for performance-driven server clustering applications in enterprise data centers, high-performance computing (HPC), and embedded environments. The adapter is designed to operate at InfiniBand FDR speeds (56 Gbps or 14 Gbps per lane). Clustered databases, parallelized applications, transactional services, and high-performance embedded I/O applications potentially achieve significant performance improvements, helping to reduce completion time and lower the cost per operation. The Flex System IB6132 2-port FDR InfiniBand Adapter simplifies network deployment by consolidating clustering, communications, and management I/O, and helps provide enhanced performance in virtualized server environments.
- Product Description Lenovo Flex System IB6132 - network adapter - 2 ports
- Device Type Network adapter
- Form Factor Plug-in card
- Interface (Bus) Type PCI Express 3.0 x8
- Dimensions (WxDxH) 3.9 in x 3.1 in
- Weight 0.46 oz
- Ports Qty 2 ports
- Cabling Type 4x InfiniBand (SFF-8470)
- Data Link Protocol InfiniBand
- Data Transfer Rate 56 Gbps
- Network / Transport Protocol TCP/IP, UDP/IP, IPoIB
- Compliant Standards IBTA 1.2.1
- System Requirements SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Microsoft Windows HPC Server 2008 R2, Red Hat Enterprise Linux 5.5, Red Hat Enterprise Linux 6, SuSE Linux Enterprise Server 11 SP1, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, SuSE Linux Enterprise Server 10 SP4, Red Hat Enterprise Linux 5.6
- Designed For Flex System x220 Compute Node; x240 Compute Node; x240 M5
|
