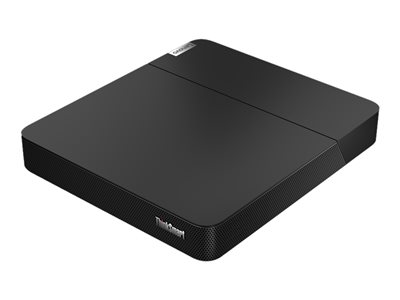

Lenovo ThinkSmart - tiny - Core i5 1145G7E 1.5 GHz - vPro - 8 GB - SSD 256 GB
Lenovo ThinkSmart - tiny - Core i5 1145G7E 1.5 GHz - vPro - 8 GB - SSD 256 GB
- Price:
$1,256.99
- Availability:
- Mfr #: 11RXS00000
- UNSPSC #: 45111902
- Item #: 009562498
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Cache Memory
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
Miscellaneous
| Included Accessories | VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, VOC, TCG Certified, TUV Rheinland Ultra Low Noise Certification |
Networking
| Ethernet Controller | Intel I219-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Dual Band Wireless-AC 9260 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Features | Wake on LAN (WoL), Intel Active Management Technology (AMT) |
Dimensions & Weight
| Width | 8.9 in |
| Depth | 7.9 in |
| Height | 1.5 in |
| Weight | 2.43 lbs |
Audio Output
| Compliant Standards | High Definition Audio |
Hard Drive
| Type | SSD - M.2 2280 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express 3.0 x4 |
| Features | NVM Express (NVMe) |
Graphics Controller
| Graphics Processor | Intel Iris Xe Graphics shared video memory (UMA) |
| Video Interfaces | HDMI |
| Max Monitors Supported | 2 |
Monitor
| Monitor Type | None. |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years - on-site |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% |
Input Device
| Connectivity Technology | Wired |
General
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black with red bottom |
Processor / Chipset
| CPU Qty | 1 |
| Max CPU Qty | 1 |
Expansion / Connectivity
| Slots | 1 (total) / 0 (free) x M.2 Card |
| Interfaces | 1 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x Thunderbolt 4/USB4 ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x HDMI output |
Power
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 90 Watt |
| Efficiency | 89% |
Operating System / Software
| OS Provided | Windows 10 IoT Enterprise SAC 64-bit Edition English |
| Software | Zoom Rooms |
Display
| Image Aspect Ratio | 16:10 |
RAM
| Installed Size | 8 GB / 8 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Features | Dual channel memory architecture |
| Configuration Features | Provided memory is soldered |
Optical Storage
| Type | No optical drive |
