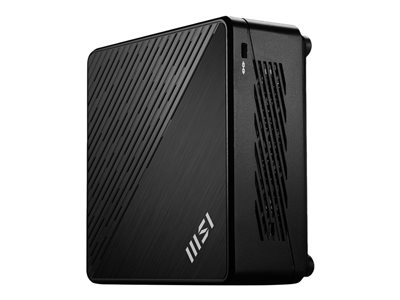

MSI Cubi 5 12M 027US - mini PC - Core i7 1255U 1.7 GHz - 16 GB - SSD 512 GB
MSI Cubi 5 12M 027US - mini PC - Core i7 1255U 1.7 GHz - 16 GB - SSD 512 GB
- Price:
$839.99
- Availability:
- Mfr #: CUBI512M027
- UNSPSC #: 43211508
- Item #: 010098920
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
Miscellaneous
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | Yes |
| Compliant Standards | FCC Class B certified, UL, VCCI, cUL, CB, RCM |
Networking
| Ethernet Controller | Realtek RTL8125BG-CG, RTL8111H |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
Dimensions & Weight
| Width | 4.9 in |
| Depth | 4.9 in |
| Height | 2.1 in |
| Weight | 19.36 oz |
Hard Drive
| Type | SSD - M.2 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
Dimensions & Weight (Shipping)
| Shipping Weight | 3.06 lbs |
Graphics Controller
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI, DisplayPort, USB-C |
| Max Monitors Supported | 3 |
Monitor
| Monitor Type | None. |
Storage Controller
| Type | 1 x SATA |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
General
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Built-in Devices | Air cooling solution |
Processor / Chipset
| CPU | Intel Core i7 (12th Gen) 1255U |
| Clock Speed | 1.7 GHz (P-core) / 1.2 GHz (E-core) |
| Max Turbo Speed | 4.7 GHz (P-core) / 3.5 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
Expansion / Connectivity
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card |
| Interfaces | 1 x headphones/microphone (1 in front) ¦ 1 x Thunderbolt 4/DisplayPort 1.4/USB-C (1 front) ¦ 1 x HDMI output (1 rear) ¦ 1 x DisplayPort (1 rear) ¦ 4 x USB 3.2 Gen 2 (2 front, 2 rear) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) |
Power
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 65 Watt |
Operating System / Software
| OS Provided | Windows 11 Pro |
| Software | MSI Center |
RAM
| Installed Size | 16 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 2 x 8 GB |
Optical Storage
| Type | No optical drive |
