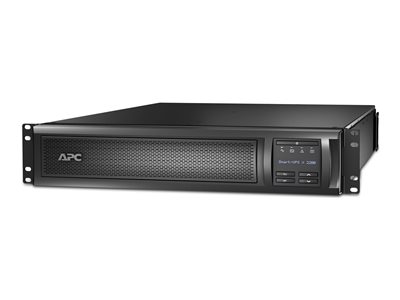

APC Smart-UPS X 2200VA Rack/Tower LCD 100-127V

APC Smart-UPS X 2200VA Rack/Tower LCD 100-127V

  • Price:
    $1,479.99
  • Availability:
  • Mfr #:  SMX2200RMLV2U
  • UNSPSC #:  39121011
  • Item #:  05269281
  • Add to Shopping List
  • cnet cat code #:  10061401
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
Features Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, overload protection, cold-start function
Compliant Standards CSA, TUV, BSMI, NOM, UL 1778, EN 50091-2, RoHS, FCC Part 15 A, REACH, VCCI Class A, EN 55022 Class A
Networking
Remote Management Interface RS-232, USB
Dimensions & Weight
Width 17 in
Depth 26.3 in
Height 3.3 in
Weight 84.77 lbs
Environmental Standards
ENERGY STAR Yes
Dimensions & Weight (Shipping)
Shipping Width 23.5 in
Shipping Depth 34.2 in
Shipping Height 9.6 in
Shipping Weight 100 lbs
Software / System Requirements
Software Included Drivers & Utilities
Compatibility Information
Designed For P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SMX2000LVNC, SU2000R3X155, SUA1500R2X93
Manufacturer Warranty
Service & Support Limited warranty - 3 years Limited warranty - batteries - 2 years
Battery
Quantity 1
Technology Lead acid
Run Time (Up To) 9.8 min at full load 25.3 min at half load
Recharge Time 3 hours
Features Maintenance free, sealed, leak-proof
Environmental Parameters
Min Operating Temperature 32 F
Max Operating Temperature 104 F
Humidity Range Operating 0 - 95%
Sound Emission 55 dBA
General
Device Type UPS - rack-mountable / external
Height (Rack Units) 2U
Color Black
Power Device
UPS Technology Line interactive
Input Voltage AC 120 V
Input Voltage Range AC 70 - 153 V
Frequency Provided 50/60 Hz 3Hz
Input Connector(s) Power NEMA L5-30
Frequency Required 50/60 Hz 3Hz
Input Connectors 1 x power NEMA L5-30P
Power Output Connectors Details 6 x 6 x power NEMA 5-15R 2 x power NEMA 5-20R
Output Voltage AC 120 V 5% - 50/60 Hz
Power Capacity 1.98 kW / 2200 VA
Output Waveform Sinewave
Surge Suppression Yes
Surge Energy Rating 540 Joules
Expansion / Connectivity
Interfaces 1 x management (USB) - 4 pin USB Type B 1 x serial 1 x EPO (emergency power off)
Expansion Slots 1 (total) / 1 (free) x SmartSlot
