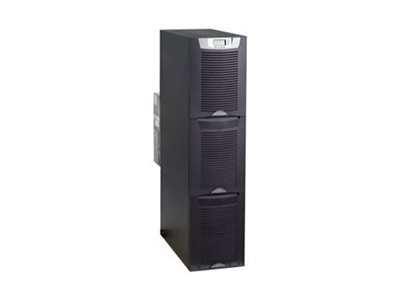

Eaton 9355 - power array - 13.5 kW - 15000 VA
Eaton 9355 - power array - 13.5 kW - 15000 VA
- Price:
$20,972.99
- Availability:
- Mfr #: KA1513400000010
- UNSPSC #: 39121011
- Item #: 001050518
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Features | Advance Battery Management (ABM), audible alarm, LCD display, LED indicators, built-in isolation transformer |
| Compliant Standards | UL, ISO 9001, cUL, UL 1778, IEC 60950, ISO 14001, EN 50091-2, IEC 62040-1-1 |
Networking
| Remote Management Interface | RS-232 |
Dimensions & Weight
| Width | 12.8 in |
| Depth | 33.7 in |
| Height | 47.6 in |
| Weight | 577.61 lbs |
Battery
| Quantity | 1 |
| Technology | Lead acid |
| Capacity | 9 Ah |
| Run Time (Up To) | 4 min at full load |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 56 dBA |
General
| Device Type | Power array - external |
| Battery Enclosure Type | Internal |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 480 V |
| Frequency Provided | 50/60 Hz |
| Input Voltage Margin | + 10% / - 15% |
| Input Wiring | 3-phase |
| Frequency Required | 45 - 65 Hz |
| Output Voltage | AC 208 V ± 5% - 50/60 Hz |
| Power Capacity | 13.5 kW / 15000 VA |
Expansion / Connectivity
| Expansion Slot(s) | 2 (total) / 2 (free) x X-Slot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| Expansion Slots | 2 (total) / 2 (free) x X-Slot |
Software / System Requirements
| Software Included | Powerware Software Suite |
