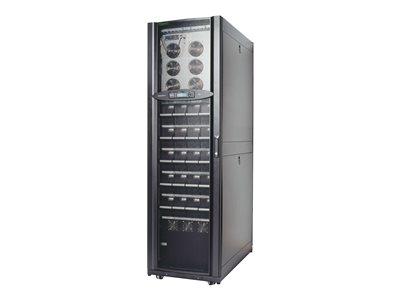

APC Smart-UPS VT 30kVA with 3 Battery Modules Expandable to 5 - power

Need Help? Contact Zones Online support at 800.408.9663

Product Description APC Smart-UPS VT 30kVA with 3 Battery Modules Expandable to 5 - power array - 24 kW - 30000 VA
Device Type Power array - external
Weight 1893.75 lbs
Input Wiring 3-phase
Input Voltage AC 480 V
Output Voltage AC 120/208/220 V � 5%
Power Capacity 24 kW / 30000 VA
Input Connectors 1 x hardwire 4-wire (3PH + G)
Output connectors 1 x hardwire 5-wire (3PH + N + G) � 5 x power NEMA L21-20
Battery Lead acid expandable
Battery Form Factor Internal
Batteries Qty 3 (installed) / 5 (supported)
Run Time (Up To) 5.5 min at full load
Networking Ethernet 10/100
Remote Management Protocol SNMP, Telnet, HTTP
Color Black
Dimensions (WxDxH) 23.6 in x 42.5 in x 78.7 in
Manufacturer Warranty 1-year warranty
