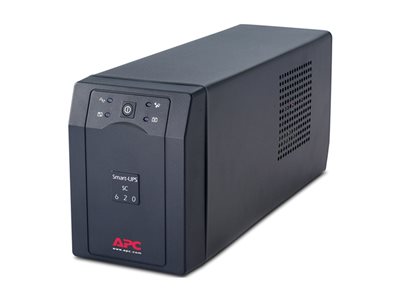

APC Smart-UPS SC 620VA - UPS - 390 Watt - 620 VA
APC Smart-UPS SC 620VA - UPS - 390 Watt - 620 VA
- Price:
$318.99
- Availability:
- Mfr #: SC620I
- UNSPSC #: 39121011
- Item #: 001133841
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
Cables Included | Serial cable |
Features | Audible alarm, audible alarm, LED indicators |
Compliant Standards | FCC Class B certified, CSA, NOM, UL 1449, UL 1778, FCC Part 15 |
Networking
Remote Management Interface | RS-232 |
Dimensions & Weight
Width | 4.7 in |
Depth | 14.5 in |
Height | 6.6 in |
Weight | 26.46 lbs |
Manufacturer Warranty
Service & Support | Limited warranty - parts and labor - 2 years |
Service & Support Details | Limited warranty - parts and labor - 2 years |
Battery
Quantity | 1 |
Technology | Lead acid |
Run Time (Up To) | 5.5 min at full load |
Environmental Parameters
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 0 - 95% |
Sound Emission | 45 dBA |
General
Output Connectors | 4 x power IEC 60320 C13 |
Power Device
Input Voltage | AC 230 V |
Input Voltage Range | AC 160 - 286 V |
Input Voltage Range (Adjustable) | AC 151 - 302 V |
Frequency Provided | 50/60 Hz |
Input Connector(s) | 1 x power IEC 320 EN 60320 C14 |
Frequency Required | 50/60 Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Power Output Connectors Details | 3 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C13 (surge) |
Output Voltage | AC 230 V ± 5% - 50/60 Hz |
Power Capacity | 390 Watt / 620 VA |
Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 |
Output Waveform | Stepped approximation to a sinewave |
Surge Suppression | Yes |
Surge Energy Rating | 320 Joules |
Expansion / Connectivity
Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) |
Software / System Requirements
Software Included | APC PowerChute Business Edition |
