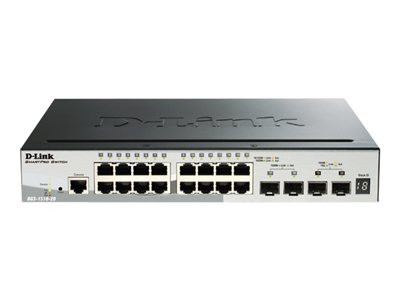

- Product Description D-Link SmartPro DGS-1510-20 - switch - 20 ports - managed - rack-mountable
- Device Type Switch - 20 ports - L3 - managed - stackable
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 16 x 10/100/1000 + 2 x Gigabit SFP + 2 x 10 Gigabit SFP+
- Performance Switching capacity: 76 Gbps ¦ Forwarding performance: 56.54 Mpps ¦ Stacking bandwidth: 20 Gbps
- Capacity ARP entries: 256 ¦ IPv6 routes: 32 ¦ IPv4 routes: 64
- MAC Address Table Size 16000 entries
- Jumbo Frame Support 9000 bytes
- Routing Protocol Static IP routing
- Remote Management Protocol SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- Features Flow control, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, half duplex mode, full duplex mode, STP support, RSTP support, MSTP support, ACL support, QoS, RADIUS support, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, LLDP support, LACP, Energy Efficient Ethernet, Loopback
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az
- Power AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH) 11 in x 7.1 in x 1.7 in
- Weight 2.73 lbs
|
