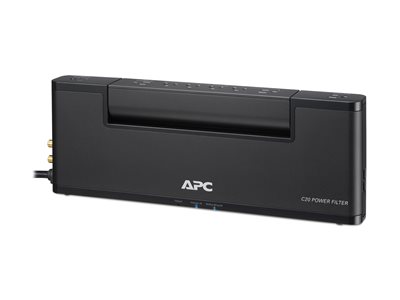

APC AV C Type Power Filter C20B - surge protector
APC AV C Type Power Filter C20B - surge protector
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 6 ft |
| Equipment Protection Value | 300000 US Dollars |
| Features | LED indicators, rotating outlets |
| Compliant Standards | FCC Class B certified, CSA, UL 1363, UL 1449, RoHS, REACH |
Dimensions & Weight
| Width | 5.4 in |
| Depth | 14.9 in |
| Height | 1.8 in |
| Weight | 3.04 lbs |
Manufacturer Warranty
| Service & Support Details | Limited warranty - lifetime |
Environmental Parameters
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
General
| Device Type | Surge protector - external |
| Color | Black |
| Localization | Canada, United States |
Power Device
| Load Rating | Home theater system |
| Input Voltage | AC 120 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15 |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Power Output Connectors Details | 8 x power NEMA 5-15 |
| Max Electric Current | 15 A |
| Dataline Surge Protection | Phone line - RJ-11 ¦ Cable TV |
| Surge Suppression | Yes |
| Surge Response Time | 1 ns |
| Surge Energy Rating | 3200 Joules |
| EMI/RFI Noise Filtration | 50 dB |
| Circuit Protection | Circuit breaker |
Dimensions & Weight (Shipping)
| Shipping Width | 7.9 in |
| Shipping Depth | 16.3 in |
| Shipping Height | 2 in |
| Shipping Weight | 3.64 lbs |
