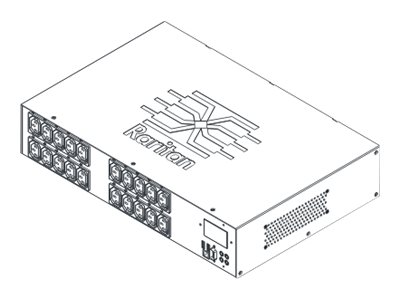

Raritan Dominion PX PX3-5434R - power control unit - 3800 VA
Raritan Dominion PX PX3-5434R - power control unit - 3800 VA
- Price:
$1,404.99
- Availability:
- Mfr #: PX3-5434R
- UNSPSC #: 39121017
- Item #: 003066682
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - external - 10 ft |
| Rack Mounting Kit | Included |
| Features | LED display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug |
| Compliant Standards | UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus |
Networking
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 11.5 in |
| Height | 3.5 in |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 85% |
General
| Output Connectors | 20 x power IEC 60320 C13 |
Power Device
| Input Voltage Range | AC 200 - 240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-20 |
| Power Output Connectors Details | 20 x power IEC 60320 C13 12 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 16 A |
| Power Capacity | 3800 VA |
Expansion / Connectivity
| Interfaces | 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x monitoring - RJ-12 ¦ 1 x monitoring - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B |
