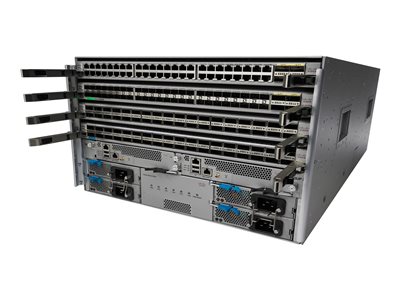

Cisco ONE Nexus 9504 - Bundle - switch - managed - rack-mountable - wi
Cisco ONE Nexus 9504 - Bundle - switch - managed - rack-mountable - wi
- Price:
$60,173.99
- Availability:
- Mfr #: C1-N9K-C9504-B3-E
- UNSPSC #: 43201601
- Item #: 003920864
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | 3 fan trays, accessory kit, Supervisor slot cover, 2 x Fabric Module slot covers, 4 x Linecard slot covers, power supply slot cover |
| Rack Mounting Kit | Included |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, VCCI Class A, KN22, CNS 13438(95) Class A, EN 300386 |
Dimensions & Weight
| Width | 17.5 in |
| Depth | 33.1 in |
| Height | 12.2 in |
Manufacturer Warranty
| Service & Support | Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
General
| Device Type | Switch - L3 - managed - with Cisco Nexus 9500 Supervisor (N9K-SUP-A), 2x Cisco Nexus 9500 System Controller (N9K-SC-A), 4x Cisco Fabric Module (N9K-C9504-FM) |
| Enclosure Type | Rack-mountable 7U |
| Performance | Bandwidth: 15 Tbps |
| Capacity | Virtual interfaces (VLANs): 4096 |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, SSH-2 |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, modular design, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, port air intake, Access Control List (ACL) support, Quality of Service (QoS), RDMA support, LLDP support, Link Aggregation Control Protocol (LACP), Class of Service (CoS), DiffServ Code Point (DSCP) support, 3 fans, 160MB packet buffer |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba |
Expansion / Connectivity
| Expansion Slots | 8 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) | 7 (installed) / 8 (max) |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 3 |
| Max Supported Qty | 3 |
| Power Redundancy | Yes |
| Power Provided | 3000 Watt |
| Features | Front-to-rear airflow |
