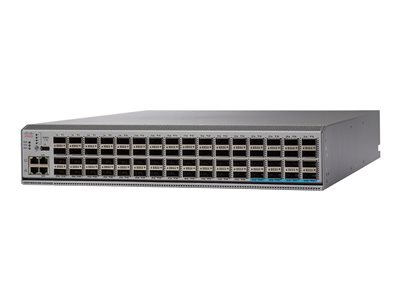

The Nexus 92304QC is optimized for Cisco NX-OS standalone deployments. It provides flexible, high-performance 40 Gbps switching with 100 Gb uplinks in a 2-rack-unit form factor. With 6.08 Tbps of bandwidth, it delivers line-rate Layer 2 and 3 features for flexible enterprise, service provider hosting, and cloud computing environments.
- Product Description Cisco Nexus 92304QC - switch - 56 ports - managed - rack-mountable
- Device Type Switch - 56 ports - L3 - managed
- Enclosure Type Rack-mountable 2U
- Subtype 40 Gigabit Ethernet
- Ports 56 x 40 Gigabit QSFP+ (breakout compatible) + 8 x 100 Gigabit QSFP28
- Performance Bandwidth: 6.08 Tbps
- Capacity Longest prefix match (LPM) entries (IPv4): 16000 ¦ HSRP groups: 490 ¦ MAC addresses: 96000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus instances: 507 ¦ Virtual Routing and Forwarding (VRF) entries: 16000 ¦ IGMP snooping entries: 32000 ¦ ACL entries (ingress): 4000 ¦ ACL entries (egress): 2000
- MAC Address Table Size 96K entries
- Routing Protocol OSPF, RIP-2, BGP, EIGRP, HSRP, PIM-SM, PIM-SSM, MSDP, ECMP
- Features VLAN support, IGMP snooping, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Per-VLAN Rapid Spanning Tree (PVRST), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), port exhaust, VXLAN tunnel endpoints (VTEP) support
- Power AC 120/230 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.5 in x 22.5 in x 3.5 in
- Weight 33.02 lbs
- Manufacturer Warranty 1-year warranty
|
