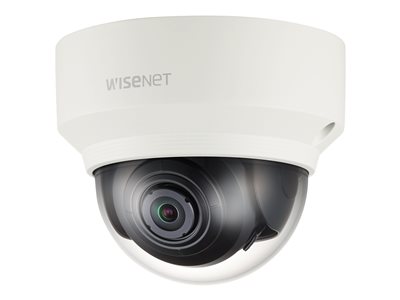

2MP Indoor Vandal Dome
2MP Indoor Vandal Dome
- Price:
$514.99
- Availability:
- Mfr #: XND-6010
- UNSPSC #: 46171610
- Item #: 004675221
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP, PIM-SM |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Compliant Standards | IEC 62262 IK08, IEEE 802.3af |
| Color | Ivory |
Lens Construction
| Type | Fixed focal |
| Focal Length | 2.4 mm |
| Lens Iris | F/2.0 |
| Focus Adjustment | Manual |
| Min Focus Distance | 15.7 in |
| Horizontal Field of View (degree) | 139 |
| Vertical Field of View (degree) | 73 |
| Diagonal Field of View (degree) | 167 |
Tilting
| Range (degree) | 0 to 67 |
Image Sensor
| Type | 2.2 MP CMOS 1/2.8" |
| Total Pixels | 1945 x 1109 |
| Effective Pixels | 1945 x 1097 |
Environmental Parameters
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 3.5 in |
| Weight | 12.87 oz |
Camera
| Type | Color - Day&Night - fixed - vandal-proof |
| Video Format | NTSC, PAL |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.055 lux - color - F2.0 - shutter 1/30 sec ¦ 0.0055 lux - B&W - F2.0 - shutter 1/30 sec |
| Video Capture | 1920 x 1080 @ 60 fps |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, video analytics, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support |
Panning
| Range (degree) | 0 to 354 |
Expansion / Connectivity
| Ports | Composite video ¦ Audio line-in/microphone ¦ Audio line out ¦ USB - Micro-USB Type B |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
Power
| Power Requirements | DC 12 V / PoE |
| Power Device | 6 Watt |
Software / System Requirements
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
