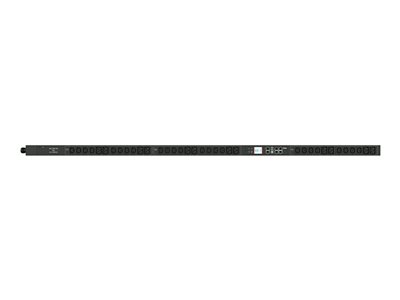

Raritan Dominion PX PX3-5735V - power distribution unit - 5800 VA
Raritan Dominion PX PX3-5735V - power distribution unit - 5800 VA
- Price:
$2,261.99
- Availability:
- Mfr #: PX3-5735V
- UNSPSC #: 39121017
- Item #: 004931949
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 10 ft |
| Rack Mounting Kit | Included |
| Features | Alarm, automatic orientation switching, vertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug, remote outlet switching, metering per input line, metering per output receptacle, replaceable controller |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus, IP44, IEC 62053-21, ISO 62053-21 |
Networking
| Remote Management Interface | Ethernet 10/100, RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
Dimensions & Weight
| Width | 2 in |
| Depth | 2.6 in |
| Height | 70.1 in |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black powder coat |
Power Device
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 190 - 208 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-20P |
| Power Output Connectors Details | 24 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 C19 16 A |
| Output Voltage | 208 V |
| Max Electric Current | 20 A |
| Power Capacity | 5800 VA |
| Power Capacity Details | 5.3 kVA at 190 V, 5.8 kVA at 208 V |
Expansion / Connectivity
| Interfaces | 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x USB - 4 pin mini-USB Type B ¦ 2 x USB - 4 pin mini-USB Type A ¦ 1 x sensor - RJ-45 ¦ 1 x management (modem) - RJ-45 ¦ 2 x monitoring - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 11 in |
| Shipping Depth | 4.5 in |
| Shipping Height | 80.9 in |
