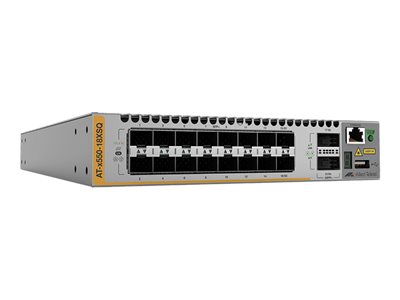

- Product Description Allied Telesis AT X550-18XSQ - switch - 16 ports - smart - rack-mountable
- Device Type Switch - 16 ports - L3 - smart - stackable
- Enclosure Type Rack-mountable
- Subtype 10 Gigabit Ethernet
- Ports 16 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink)
- Performance Switching fabric speed: 480 Gbps ¦ Forwarding rate: 357.1 Mpps ¦ Stacking bandwidth: 160 Gbps ¦ Bandwidth per port: up to 64 Kbps ¦ Latency (1 Gbps): 3.9 µs ¦ Latency (10 Gbps): 3 µs ¦ Latency (40 Gbps): 2.2 µs
- Capacity Configurable VLANs: 4094 ¦ Priority queues: 8
- MAC Address Table Size 16K entries
- Jumbo Frame Support 13KB
- Routing Protocol OSPF, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, MLD, VRRPv3, CIDR
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SLP, SCP, SNMP 6, SSH 6, SFTP
- Features Flow control, DHCP support, BOOTP support, ARP support, Syslog support, port mirroring, DiffServ support, full duplex mode, SNTP support, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Internet Content Adaptation Protocol (ICAP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Equal-Cost Multipath (ECMP), STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), SNMP trap, DNS relay, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), loop prevention, tagged VLAN, Generic VLAN Registration Protocol (GVRP), 4MB packet buffer, 802.1x authentication, Type of Service (ToS), VoIP support, OpenFlow support, IP source guard, Ethernet Protection Switched Ring (EPSRing), Virtual Chassis Stacking (VCStack), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), black hole routing, Control Plane Prioritization (CPP), SuperLoop Protection (SLP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Cable fault locator (TDR), Software Defined Networking (SDN), Digital Diagnostics Monitoring (DDM), Network Timing Protocol (NTP), Active Fiber Monitoring, policy based routing, Authentication, Authorization and Accounting (AAA), VLAN Double Tagging (Q-in-Q), DNS client, LLDP-MED, storm protection, User Datagram Protocol (UDP), proxy ARP, Protocol Independent Multicast (PIM)
- Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX
- Power AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH) 8.3 in x 13.6 in x 1.7 in
- System Requirements AlliedWare Plus
- Localization United States
|
