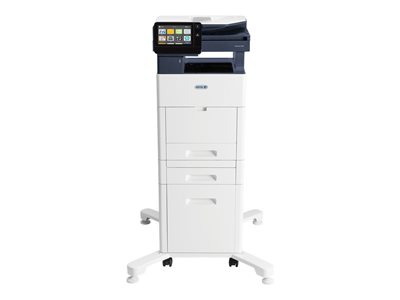

Xerox VersaLink C505/S - multifunction printer - color

Xerox VersaLink C505/S - multifunction printer - color

  • Price:
    $2,299.00
  • Availability:
  • Mfr #:  C505/S
  • UNSPSC #:  44101503
  • Item #:  005052023
  • Add to Shopping List
  • cnet cat code #:  1003011102
Need Help? Contact Zones Online support at 800.408.9663
Printing
Max Printing Resolution Up to 1200 x 2400 dpi (mono) / up to 1200 x 2400 dpi (color)
Max Printing Speed Up to 45 ppm (mono) / up to 45 ppm (color)
Printer Drivers / Emulations PCL 5e, PCL 6, PostScript 3, PDF, TIFF, HPGL, XPS, JPEG
Automatic Duplexing Yes
First Print Out Time B/W 5.1 sec
First Print Out Time Color 5.6 sec
Connections
Interfaces USB host ¦ USB 3.0 ¦ Gigabit LAN - RJ-45
Security Protocols & Features Secure Print, SSL, TLS, Secure Fax, IP filtering, port blocking, AES-256, Secure Scan, Secure Email
Operating System Support Linux, MS Windows Server 2003, HP-UX 11i v3, MS Windows 7, MS Windows 2000 Server, MS Windows Server 2008, MS Windows Server 2008 R2, MS Windows Server 2012, Windows 8, Apple Mac OS X 10.10, Windows 10, Apple Mac OS X 10.11, macOS 10.12, SuSe Linux 13.2, Red Hat Enterprise Linux, IBM AIX 7.2, Oracle Solaris 11.3, Fedora 24
Miscellaneous
Warm-Up Time 11 sec
First Copy Out Time B/W 4.9 sec
First Copy Out Time Color 6.6 sec
Compliant Standards FIPS 140-2
Copying
Max Copying Speed Up to 45 ppm (mono) / up to 45 ppm (color)
Max Copying Resolution Up to 600 x 400 dpi (mono) / up to 600 x 400 dpi (color)
Max Document Enlargement 400%
Max Document Reduction 25%
Maximum Copies 999
Automatic Duplexing Yes
Copying Features ID Card Copy, collation copy, Edge Erase, Book Copy, Auto Background Suppression
Scanning
Automatic Duplexing Yes
Optical Resolution 600 x 600 dpi
Grayscale Depth 8-bit
Color Depth 24-bit
Memory
Standard Memory 4 GB
Environmental Parameters
Sound Emission 33.6 dBA (idle)
Min Operating Temperature 50 °F
Max Operating Temperature 89.6 °F
Humidity Range Operating 15 - 85%
General
Device Type Multifunction printer
Printing Technology LED - color
Monthly Duty Cycle (max) 120000 pages
Recommended Monthly Volume 8000 pages
Display Diagonal Size 7"
Color Support Color
Display Color Support Color
Display Features Touch screen
Connection Availability Yes
PC Connection Availability Yes
PC Connection Gigabit LAN, USB host, NFC, USB 3.0
Interface Gigabit LAN, USB host, NFC, USB 3.0
AirPrint Enabled Yes
Office Machine Features Xerox Extensible Interface Platform (EIP), scan to e-mail, scan to network, scan to FTP, scan to SMB, scan to USB host
Environmental Standards
ENERGY STAR Certified Yes
Document & Media Handling
Max Original Size 8.5 in x 14 in
Original Type Sheets
Document Feeder Capacity 100 sheets
Min Media Size 3 in x 5 in
Max Media Size A4/Legal
Min Media Weight 60 g/m²
Max Media Weight 220 g/m²
Min Media Weight (lb) 16 lbs (Bond)
Max Media Weight (lb) 43 lbs (Cover)
Supported Media Type Envelopes, plain paper, labels, recycled paper, bond paper, card stock, punched paper, preprinted paper
Supported Media Sizes Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in)
Standard Media Capacity 700 sheets
Max Media Capacity 3250 sheets
Bypass Feeder Capacity 150 sheets
Output Trays Capacity 400 sheets
Document & Media Handling Details ADF - 100 sheets size: 5.5 in x 5.5 in - 8.5 in x 14 in weight: 60 g/m² - 128 g/m²; weight (lbs): 16 lbs (Bond) - 32 lbs (Bond) ¦ Bypass tray - 150 sheets size: 3 in x 5 in - Legal (8.5 in x 14 in) weight: 60 g/m² - 220 g/m²; weight (lbs): 16 lbs (Bond) - 43 lbs (Cover) ¦ Input tray - 550 sheets size: 2.99 in x 7.48 in - Legal (8.5 in x 14 in) weight: 60 g/m² - 220 g/m²; weight (lbs): 16 lbs (Bond) - 43 lbs (Cover) ¦ Output tray - 400 sheets
Speed Details Printing: up to 43 ppm (A4) - B/W ¦ Printing: up to 43 ppm (A4) - color ¦ Printing: up to 45 ppm (Letter A) - B/W ¦ Printing: up to 45 ppm (Letter A) - color ¦ Copying: up to 43 ppm (A4) - B/W ¦ Copying: up to 43 ppm (A4) - color ¦ Copying: up to 43 ppm (A4) - B/W duplex ¦ Copying: up to 43 ppm (A4) - color duplex ¦ Copying: up to 45 ppm (Letter A) - B/W ¦ Copying: up to 45 ppm (Letter A) - color ¦ Copying: up to 45 ppm (Letter A) - B/W duplex ¦ Copying: up to 45 ppm (Letter A) - color duplex ¦ Printing: up to 37 ppm (Legal) - B/W ¦ Printing: up to 37 ppm (Legal) - color ¦ Printing: up to 42 ppm (A4) - B/W duplex ¦ Printing: up to 42 ppm (A4) - color duplex ¦ Printing: up to 44 ppm (Letter A) - B/W duplex ¦ Printing: up to 44 ppm (Letter A) - color duplex ¦ Printing: up to 22 ppm (Legal) - B/W duplex ¦ Printing: up to 22 ppm (Legal) - color duplex ¦ Scanning: up to 43 ipm (Letter A) - B/W ¦ Scanning: up to 42 ipm (Letter A) - color ¦ Scanning: up to 73 ipm (Letter A) - B/W duplex ¦ Scanning: up to 55 ipm (Letter A) - color duplex ¦ Scanning: up to 40 ipm (A4) - B/W ¦ Scanning: up to 40 ipm (A4) - color ¦ Scanning: up to 69 ipm (A4) - B/W duplex ¦ Scanning: up to 52 ipm (A4) - color duplex
Dimensions & Weight (Shipping)
Shipping Width 23.4 in
Shipping Depth 25.8 in
Shipping Height 31.1 in
Shipping Weight 95.02 lbs
Power
Voltage Required AC 120 V (50/60Hz)
Power Consumption Operational 730 Watt
Power Consumption Standby 89 Watt
Power Consumption Sleep 9 Watt
