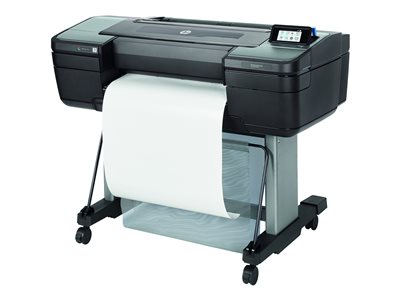

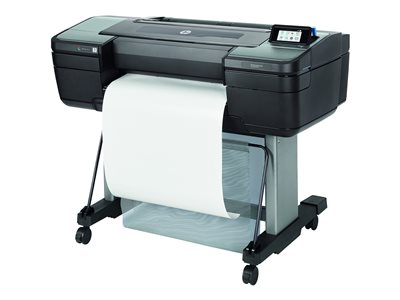

HP DesignJet Z9+ PostScript - large-format printer - color - thermal i
HP DesignJet Z9+ PostScript - large-format printer - color - thermal i
- Price:
$4,629.00
- Availability:
- Mfr #: W3Z71A#B1K
- UNSPSC #: 43212107
- Item #: 005924597
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Spindle, media bin, stand |
| Consumables Included | 1 x ink cartridge (cyan) ¦ 1 x ink cartridge (magenta) ¦ 1 x ink cartridge (yellow) ¦ 1 x ink cartridge (chromatic red) ¦ 1 x ink cartridge (photo black) ¦ 1 x ink cartridge (matte black) ¦ 1 x ink cartridge (chromatic blue) ¦ 1 x ink cartridge (chromatic green) ¦ 1 x ink cartridge (gray) ¦ 5 x printhead |
| Compliant Standards | FCC Class B certified, CSA, CCC, PSB, IRAM, RoHS, EN 60950-1, ICES Class B, CCC Class B, WEEE, REACH, KCC Class B, LVD, ERP, EMC Class B, VCCI Class B, EAC, BIS, SABS Class B, ACMA, RSM |
Networking
| Networking | Print server |
Dimensions & Weight
| Width | 50.9 in |
| Depth | 27.4 in |
| Height | 39.3 in |
| Weight | 145.5 lbs |
Environmental Standards
| EPEAT Compliant | EPEAT Silver |
| ENERGY STAR | Yes |
Printer
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 9-ink - cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray |
| Nozzle Configuration | 2112 nozzles |
| Ink Cartridge Configuration | 9 cartridges (1 each: cyan, magenta, chromatic red, yellow, matte black, photo black, chromatic green, chromatic blue, gray) |
| Ink Type | HP Vivid Photo Inks |
| Print Speed | Up to 1.5 min/page - color normal - ANSI D (22 in x 34 in) ¦ Up to 1.5 min/page - color normal - A1 (23.4 in x 33.1 in) |
| Connectivity Technology | Wired |
| Built-in Devices | Cutter |
| Interface | Gigabit LAN, USB host |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| PostScript Support | Standard |
| Language Simulation | PostScript 3, HP RTL, CALS G4, HP GL/2, TIFF, PDF 1.7, JPEG |
| Cutter | Yes |
| Printer Features | Print from mobile device, print from e-mail |
Dimensions & Weight (Shipping)
| Width (Shipping) | 56.7 in |
| Depth (Shipping) | 30.2 in |
| Height (Shipping) | 28.3 in |
| Weight (Shipping) | 213.85 lbs |
Software / System Requirements
| Software Included | Drivers & Utilities, HP Web JetAdmin, HP Click, HP JetAdvantage Security Manager, HP Partner Link, HP MPS, HP DesignJet Utility, HP Color Center |
Storage
| Hard Drive | 500 GB |
Media Handling
| Media Type | Photo paper, fine art paper, bond paper, film, backlit paper, glossy paper, poster/banner paper, matte paper |
| Max Media Size | Roll (24 in) |
| Min Media Size (Custom) | 8.25 in x 11 in |
| Max Media Size (Custom) | 24 in x 66 in |
| Media Sizes | Letter A Size (8.5 in x 11 in), A4 (8.25 in x 11.7 in), A3 (11.7 in x 16.5 in), A2 (16.5 in x 23.4 in), A1 (23.4 in x 33.1 in), Ledger B Size (11 in x 17 in), ANSI C (17 in x 22 in), ANSI D (22 in x 34 in), 24 in x 66 in, 8.27 in x 11 in, Roll (24 in) |
| Max Printing Width | 24.02 in |
| Media Thickness Range | Up to 0.031 in |
| Media Weight | 80 g/m² - 500 g/m² |
| Total Media Capacity | 1 roll |
| Media Feeders | 1 x manual - 1 roll - Roll (24 in) weight: 80 g/m² - 500 g/m² |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% |
| Sound Emission (Idle) | 33 dBA |
| Sound Emission (Operating) | 42 dBA |
General
| Printer Type | 24" large-format printer - ink-jet - color |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
Expansion / Connectivity
| Connections | 1 x Gigabit LAN - RJ-45 ¦ 1 x USB host |
Power
| Power Device | Power supply - internal |
| Frequency Required | 50/60 Hz |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 100 Watt |
| Power Consumption Stand by | 32 Watt |
| Power Consumption Sleep | 0.3 Watt |
