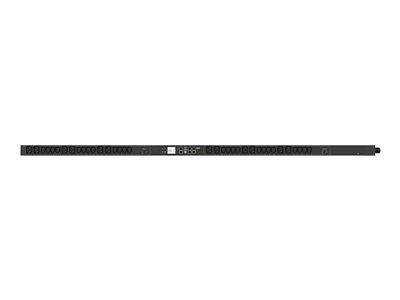

PX3-5886V-K21 230V IPDU W/36 BLU
PX3-5886V-K21 230V IPDU W/36 BLU
- Price:
$2,734.99
- Availability:
- Mfr #: PX3-5886V-K2
- UNSPSC #: 39121017
- Item #: 005943946
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 10 ft |
| Features | Powder coated, vertical orientation, 16 Mb flash, LCD display, current meter, LED indicators, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, power cable IP44 compliant, 2 x LEGBXA6-16 overload protection, cord retention, removable controller, Auto-Flip Current Display, voltage meter, environmental sensor ready |
| Compliant Standards | ICES-003, RoHS, FCC Part 15 A, IEC 62053-21, ISO 62053-21 |
Networking
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI, JSON-RPC, SMTP, Modbus, DHCP |
Dimensions & Weight
| Width | 2 in |
| Depth | 2.6 in |
| Height | 70.1 in |
| Weight | 14.55 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Blue |
| Image Color Disclaimer | The displayed product image may be a different color |
Power Device
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 2P+E 32A |
| Power Output Connectors Details | 24 x power IEC 60320 C13 - 230 V 10 A ¦ 12 x power IEC 60320 C19 - 230 V 16 A |
| Output Voltage | AC 230 V |
| Max Electric Current | 32 A |
| Power Capacity | 7400 VA |
| Power Capacity Details | 6.4 kVA at 200 V, 7.7 kVA at 240 V |
Expansion / Connectivity
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x console/modem - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x expansion - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 11 in |
| Shipping Depth | 4.5 in |
| Shipping Height | 80.9 in |
| Shipping Weight | 20.28 lbs |
