The Cisco Catalyst 6840-X series switch is a 2RU fixed backbone switch in the Cisco Catalyst 6800 family. The 6840-X is based on the Cisco Catalyst 6800, with more than 3000 features and maturity of software code. The Cisco Catalyst 6840-X is the smallest Multiprotocol Label Switching (MPLS) aggregator or Instant Access controller in the Cisco 6800 Catalyst Family.
This 10G/40G-ready platform is ideal for those who want to introduce premium 10G services in small or midsize campus backbones. This unique platform offers 10G port density, full IPv4/IPv6 and MPLS/VPLS functionality with large table sizes (up to 256,000 FIB entries). With a full suite of L2/L3, virtualization, security, multicast, IPv6, application visibility, smart operations, and rich media services, the Cisco Catalyst 6840-X delivers unprecedented capabilities on day one. This platform also runs on the same architecture as the Cisco Catalyst 6500 Supervisor Engine 2T and therefore offers stability with proven operating system software.
The Cisco Catalyst 6840-X series chassis offers integrated resiliency by providing 1+1 power supply redundancy, single removable fan-tray with four redundant fans, and support for Virtual Switching System (VSS), thereby limiting network downtime, and makes sure of workforce productivity, customer satisfaction, and profitability.

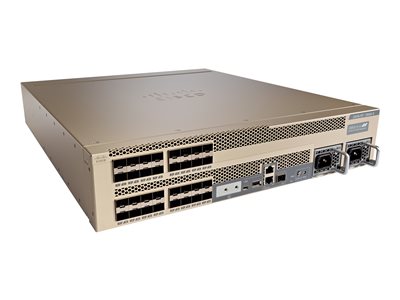

- Product Description Cisco Catalyst 6832-X Chassis (Standard Tables) - switch - 32 ports - managed - rack-mountable
- Device Type Switch - 32 ports - managed
- Enclosure Type Rack-mountable 2U
- Subtype 10 Gigabit Ethernet
- Ports 32 x 1 Gigabit SFP/ 10 Gigabit SFP+
- Performance Bandwidth (full duplex): 160 Gbps ¦ IPv4 routing: 120 Mpps ¦ IPv6 routing: 60 Mpps
- Capacity IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ NetFlow entries: 1000000 ¦ IPv4 routes (Multicast): 128000 ¦ IPv6 routes (Multicast): 64 ¦ Virtual interfaces (VLANs): 4094 ¦ Domains: 16000 ¦ ACL entries: 64000
- MAC Address Table Size 128K entries
- Jumbo Frame Support 9216 bytes
- Routing Protocol IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, MSDP, MLDv2, MLD, MPLS, PIM-SMv6, PIM-DMv6
- Remote Management Protocol RMON, SMON
- Features NAT support, VLAN support, IGMP snooping, DoS attack prevention, IPv6 support, WRED, PIM snooping, STP support, ACL support, VRF-Lite, reset button, URPF, IPv4 support, DWRR, SRR, Port Security, RSPAN, NetFlow, MIB, FNF, MSDP, 802.1x authentication, DSCP support, MACsec support, IGMP filtering, VPLS, CoPP
- Compliant Standards IEEE 802.1x, IEEE 802.1ae
- Power Redundancy Optional
- Dimensions (WxDxH) 17.4 in x 21.8 in x 3.5 in
- Weight 74.85 lbs
- Pricing Type Refurbished
- Manufacturer Warranty 1-year warranty
|
