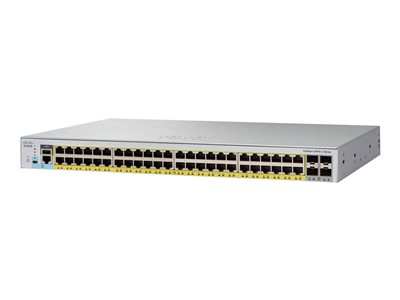

Cisco Catalyst 2960L-SM-48TS - switch - 48 ports - smart - rack-mountable
Cisco Catalyst 2960L-SM-48TS - switch - 48 ports - smart - rack-mountable
- Price:
$938.99
- Availability:
- Mfr #: WS-C2960L-SM-48TS
- UNSPSC #: 43222612
- Item #: 006441942
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | 2 x console cable - 0.7 in |
| MTBF | 1,370,769 hours |
| Compliant Standards | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, USGv6, AS/NZS CISPR22 Class A |
Dimensions & Weight
| Width | 1.7 in |
| Depth | 9.4 in |
| Height | 17.5 in |
| Weight | 6.57 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% |
General
| Device Type | Switch - 48 ports - L3 - smart - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Forwarding bandwidth: 88 Gbps ¦ Switching bandwidth: 176 Gbps ¦ Forwarding rate: 77.38 Mpps |
| Capacity | Egress port queues: up to 8 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv6 groups (Multicast): 1024 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ Maximum transmission unit (MTU) (bytes): 9198 byte |
| Jumbo Frame Support | 10240 bytes |
| Routing Protocol | RIP, IGMP, MLDv2, MLD |
| Remote Management Protocol | RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, NTP |
| Authentication Method | Kerberos, RADIUS, TACACS+, WebAuth |
| Features | DHCP support, auto-negotiation, IGMP snooping, Multicast Storm Control, Unicast Storm Control, MSTP support, DTP support, PAgP support, Cisco EnergyWise technology, UDLD, Rapid PVST+, fanless, SRR, LACP, MAC Address Notification, static routing, CoS, DSCP support, IP source guard, WTD, VTP, BPDU, STRG, AAA, Voice VLAN, proxy ARP, EEE, SPAN, Enhanced QoS, BPDU Guard, RSTP |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
| Processor | ARM7: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Port status, port duplex mode, system, link/speed |
Expansion / Connectivity
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ ¦ 1 x console (USB) ¦ 1 x console RJ-45 |
Power
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
Software / System Requirements
| Software Included | Cisco IOS LAN Lite, Cisco Prime Infrastructure, Cisco DNA Center |
