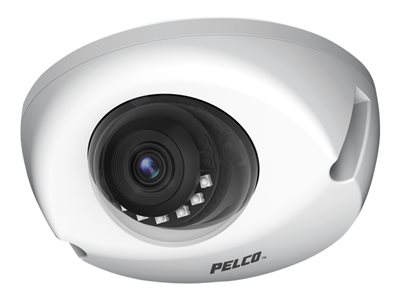

SARIX PRO 3 IR WEDGE, 2.8mm, 1MP
SARIX PRO 3 IR WEDGE, 2.8mm, 1MP
- Price:
$311.99
- Availability:
- Mfr #: IWP133-1ERS
- UNSPSC #: 52161545
- Item #: 007331409
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | UL, ISO 9001, cUL, ICES-003 Class A, UL 60950-1, EN 60950-1, IK10, IP66, CAN/CSA C22.2 No. 60950-1-07, KC, RCM, IEC 60950-22, UL 60950-22, EN 55022 Class A, FCC CFR47 Part 15 A, EN 50130-4 |
| Color | RAL 9003 |
Lens Construction
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/2.0 |
| Horizontal Field of View (degree) | 112 |
| Vertical Field of View (degree) | 60 |
| Diagonal Field of View (degree) | 132 |
Tilting
| Range (degree) | 0 to 180 |
Panning
| Range (degree) | -90 to +90 |
Dimensions & Weight (Shipping)
| Shipping Weight | 22.22 oz |
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, IGMP, SSH, LDAP, SSL, QOS |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Image Sensor
| Type | 1 MP CMOS 1/2.8" |
Environmental Parameters
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 5 - 95% (non-condensing) |
Titling
| Range (degree) | 0 to 180 |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | G.711, G.711a, G.711u |
| Form Factor | Dome |
| Camera Mount Type | Surface mount |
| Connectivity Technology | Wired |
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 2.2 in |
| Weight | 13.4 oz |
Camera
| Type | Color - Day&Night - fixed - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1280 x 960 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/10000 sec |
| Minimum Illumination | 0.038 lux - color - F2.0 ¦ 0.002 lux - B&W - F2.0 |
| Infrared Distance | 82 ft |
| Frame Rate (max) | 30 frames per second |
| Features | White balance, progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), 3D Noise Reduction Technology, Motion Detection Technology, infrared cut filter, dual video stream, Variable Bitrate (VBR), Constant Bitrate (CBR), ONVIF (Profile S) support, ONVIF (Profile G) support |
Expansion / Connectivity
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | PoE |
| Power Device | 9.6 Watt |
