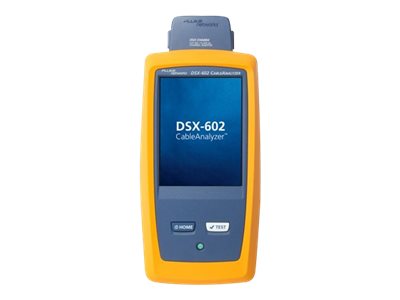

500MHZ CABLE ANALYZER PRO V2 WITH WIFI
500MHZ CABLE ANALYZER PRO V2 WITH WIFI
- Price:
$15,852.99
- Availability:
- Mfr #: DSX-602-PRO
- UNSPSC #: 27113203
- Item #: 007335357
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Dimensions & Weight
| Width | 2.6 in |
| Depth | 5.2 in |
| Height | 11 in |
| Weight | 3 lbs |
Battery
| Technology | Lithium ion |
| Voltage | 7.2 V |
| Run Time (Up To) | 8 hour(s) |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Min Storage Temperature | -22 °F |
| Max Storage Temperature | 140 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Vibration Tolerance (operating) | 2 g @ 5-500 Hz |
| Drop Specification | 3.3 ft |
| Max Altitude Operating | 13120 ft |
General
| Device Type | Network tester kit |
| Kit Content | Main Unit, Smart Remote |
| Media | Copper, radio |
| Features | USB connectivity, ProjX Management System, 500MHz maximum frequency |
| Tests, Tools and Measurements | Length, wiremap, link insertion loss, near-end crosstalk, attenuation-to-crosstalk ratio far end, return loss, delay skew between pair, propagation delay, DC loop resistance, insertion loss (attenuation), power sum, IEEE 802.11 a/b/g/n discovery |
| Cable Types | CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a |
| Software | LinkWare PC, LinkWare Live |
| Included Accessories | Carrying case, 2 x AC power adapters, 2 x CAT 6/Class Ea permanent link adapters, 2 x CAT 6A channel adapters, USB interface cable |
| Cables Included | 1 x USB cable ¦ 1 x RJ-45 to RJ-45 patch cable - 5.9 in |
| Connectors | RJ-45 |
| Compliant Standards | IEC 61010-1 3rd Edition |
| Test Standards | TIA-568-C.2, ISO/IEC 11801 |
Display
| Diagonal Size | 5.7" |
| Technology | LCD |
| Color Support | Color |
| Features | Touchscreen |
