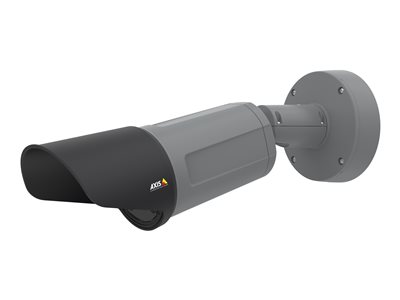

Q1700-LE LIC PLT CAM DELIVERS CLEAR
Q1700-LE LIC PLT CAM DELIVERS CLEAR
- Price:
$1,901.99
- Availability:
- Mfr #: 01782-001
- UNSPSC #: 46171610
- Item #: 007360697
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP, USGv6 |
Miscellaneous
| Included Accessories | Connector kit, Resistorx L-key |
| Compliant Standards | EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 62262 IK08, IEC 62262 IK10, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, EAC, NEMA TS-2, IS13252, FCC CFR47 Part 15 B Class A, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 62262 IK10, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, EN 62262 IK08, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, NIST SP500-267 |
| Color | Dark gray |
Lens Construction
| Optical Zoom | 8 x |
| Focal Length | 18 mm - 137 mm |
| Lens Iris | F/2.9-4.1 |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2.3 - 16 |
| Vertical Field of View (degree) | 1.3 - 9.6 |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Image Sensor
| Type | RGB CMOS 1/2.8" |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 10 - 100% |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | G.726, AAC-LC, LPCM, G.711, OPUS |
| Connectivity Technology | Wired |
| Width | 17.3 in |
| Depth | 5.8 in |
| Height | 5.8 in |
| Weight | 5.29 lbs |
Camera
| Type | Color - Day&Night - pan / tilt / zoom - outdoor, indoor - weatherproof |
| Digital Video Format | MJPEG, H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Exposure Range | 1 sec - 1/66500 sec |
| Minimum Illumination | 0.16 lux - color - F1.4 - 50 IRE ¦ 0.03 lux - B&W - F1.4 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 164 ft |
| Digital Video Capture Resolution | 160 x 120, 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| RAM | 1024 MB |
| Flash Memory | 512 MB |
| Features | Sharpness control, white balance, saturation control, brightness control, contrast control, NAS-Ready, OptimizedIR, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, Forensic WDR, exposure zone, motion detection, VAPIX support |
Expansion / Connectivity
| Ports | LAN/power - RJ-45 ¦ Terminal block ¦ Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | PoE Class 3 |
Software / System Requirements
| Software Included | Windows decoder 1-user license |
