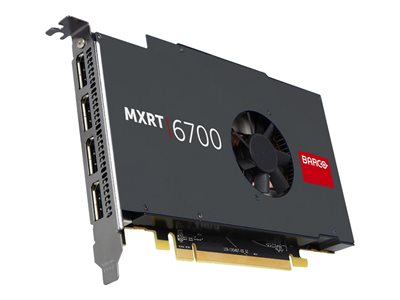

MXRT-6700 GRAPH BD 8GB 160 GB 4XDP
MXRT-6700 GRAPH BD 8GB 160 GB 4XDP
- Price:
$1,706.99
- Availability:
- Mfr #: K9306047
- UNSPSC #: 43201401
- Item #: 008109145
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Power Consumption Operational | 75 Watt |
| Compliant Standards | VCCI, CISPR 24, EN55024, FCC Part 15 B, CSA C22.2, UL 60950-1, RoHS 2011/65/EU, IEC609050-1, BMSI, CISPR 32, EN 55032, CNS |
| Depth | 6.8 in |
| Height | 4.4 in |
Memory
| Size | 8 GB |
| Technology | GDDR5 SDRAM |
| Bus Width | 256-bit |
| Bandwidth | 160 GBps |
System Requirements
| OS Required | Microsoft Windows 7 64-bit Edition, Windows 10 64-bit Edition |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
General
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Stream Processors | 1792 |
| Interfaces | 4 x DisplayPort |
| API Supported | DirectX 12, OpenGL 4.5, Vulkan 1.1, Shader Model 5.1 |
| Features | EDID emulation support |
