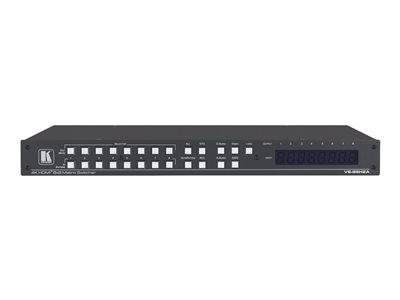

VS-88H2A
VS-88H2A
- Price:
$4,831.99
- Availability:
- Mfr #: 20-08800230
- UNSPSC #: 52161510
- Item #: 008282816
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
Dimensions & Weight
| Width | 17.2 in |
| Depth | 7.2 in |
| Height | 1.7 in |
| Weight | 5.51 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 7 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
General
| Device Type | Video/audio switch - 8 x 8 |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | HDMI |
| Performance | Bandwidth: 18 Gbps |
| Max Resolution | 4K @ 60 Hz |
| Features | Firmware upgradable, HDCP compliant, 3D support, 4K resolution support, 7.1 channel audio support, Kramer Equalization & re-Klocking Technology, EDID Management, ARC support, HDR 4K60 4:4:4 compatible, HDR support |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Built-in Devices | LED display |
Expansion / Connectivity
| Interfaces | 8 x HDMI input ¦ 8 x HDMI output ¦ 1 x LAN RJ-45 management ¦ 1 x serial (RS-232) 3 pin terminal block management ¦ 1 x USB (power only) Type A ¦ 1 x mini-USB Type B management ¦ 8 x audio input mini-jack ¦ 8 x balanced audio output 5 pin terminal block |
Dimensions & Weight (Shipping)
| Shipping Width | 20.9 in |
| Shipping Depth | 13 in |
| Shipping Height | 4.2 in |
| Shipping Weight | 7.5 lbs |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
