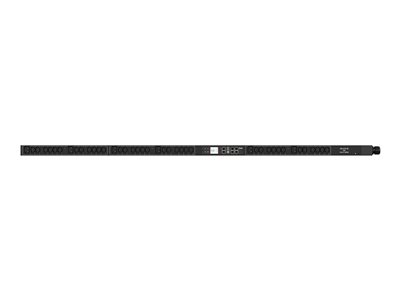

3PH 400V.20A 36XC13 6XC19 NEMA L22-20P 11.1KVA 0U RED
3PH 400V.20A 36XC13 6XC19 NEMA L22-20P 11.1KVA 0U RED
- Price:
$2,808.99
- Availability:
- Mfr #: PX3-5233U-K1
- UNSPSC #: 39121017
- Item #: 008660994
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 10 ft |
| Features | Vertical orientation, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per output receptacle, remote outlet switching, environmental sensor ready, replaceable controller, Power IQ technology, cascadable, LCD display, Auto-Flip Current Display, ARM Cortex A5 CPU, 16MB SPI Flash, 64MB DDR2 RAM, top-end feed cord entry, power cable IP44 compliant, Raritan SecureLock Ready, cord retention, LED indicators |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS |
Networking
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
Dimensions & Weight
| Width | 2 in |
| Depth | 2.6 in |
| Height | 70.1 in |
| Weight | 18.52 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
General
| Device Type | Power distribution strip - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Red |
| Image Color Disclaimer | The displayed product image may be a different color |
Power Device
| Input Voltage | AC 415 V |
| Input Voltage Range | AC 360 - 415 V |
| Input Wiring | 3-phase WYE |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L22-20P |
| Power Output Connectors Details | 36 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 20 A |
| Power Capacity | 11500 VA |
| Power Capacity Details | 10.0 kVA at 360 V, 11.5 kVA at 415 V |
Expansion / Connectivity
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x console/modem - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x expansion - RJ-45 ¦ 1 x feature - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 11 in |
| Shipping Depth | 4.5 in |
| Shipping Height | 80.9 in |
| Shipping Weight | 23.59 lbs |
