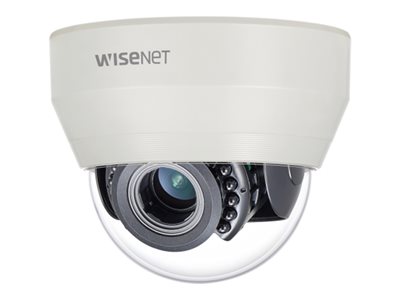

WISENET HD+ 2MP AHD IR DOME
WISENET HD+ 2MP AHD IR DOME
- Price:
$197.99
- Availability:
- Mfr #: SCD-6085R
- UNSPSC #: 46171610
- Item #: 009143825
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Composite video, AHD |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Color | Ivory |
Lens Construction
| Type | Vari-focal |
| Optical Zoom | 3.1 x |
| Focal Length | 3.2 mm - 10 mm |
| Lens Iris | F/1.6 auto iris (DC) |
| Focus Adjustment | Manual |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 32 - 110.2 |
| Vertical Field of View (degree) | 18 - 55.4 |
| Diagonal Field of View (degree) | 36.6 - 128.4 |
Tilting
| Range (degree) | 0 to 67 |
Image Sensor
| Type | 2 MP CMOS 1/2.8" |
| Total Pixels | 1945 x 1109 |
| Effective Pixels | 1945 x 1097 |
Environmental Parameters
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% |
General
| Device Type | Surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.7 in |
| Depth | 4.7 in |
| Height | 3.9 in |
| Weight | 11.29 oz |
Camera
| Type | Color - Day&Night - fixed |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 1 sec - 1/12000 sec |
| Minimum Illumination | 0.11 lux - color - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), Motion Detection Technology, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), adjustable gain control, Highlight Compensation (HLC), Defog, Samsung Super Noise Reduction (SSNRIV), auto white balance |
Panning
| Range (degree) | 0 to 350 |
Expansion / Connectivity
| Ports | Composite video/AHD - BNC |
Power
| Power Requirements | DC 12 V / AC 24 V |
