The ExtremeSwitching X620 product family is a compact switch. The X620 simplifies network operation, and supports intelligent Layer 2 switching, Layer 3 IPv4/IPv6 routing, as well as role-based policy capabilities.

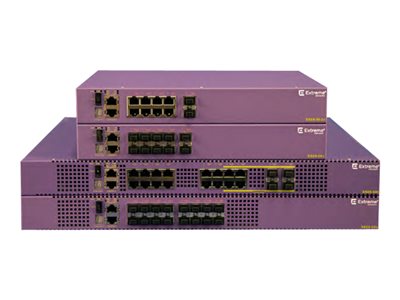

- Product Description Extreme Networks ExtremeSwitching X620 X620-16x-FB TAA - switch - 16 ports - rack-mountable - TAA Compliant
- Device Type Switch - 16 ports - L3 - stackable
- Enclosure Type Rack-mountable 1U
- Subtype 10 Gigabit Ethernet
- Ports 16 x 10 Gigabit SFP+
- Performance Switching capacity: 320 Gbps ¦ Latency (10 Gbps): 2.4 µs
- Capacity IPv4 forwarding table entries: 480 ¦ IPv4 hosts: 1500 ¦ IPv6 forwarding table entries: 240 ¦ IPv6 hosts: 1500 ¦ IPv4 routes (Multicast): 256 ¦ VLANs supported: 4092 ¦ Load-sharing groups: 128 ¦ ACL entries (ingress): 2048 ¦ ACL entries (egress): 512 ¦ QoS hardware queues per port: 8 ¦ Policies: 63
- MAC Address Table Size 16K entries
- Jumbo Frame Support 9216 bytes
- Features Data Center Bridging Exchange (DCBX) support, enhanced transmission selection, Access Control List (ACL) support, Quality of Service (QoS), 2MB packet buffer, hot swappable fan, Priority-Based Flow Control (PFC), Software Defined Networking (SDN)
- Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz
- Power Redundancy Optional
- Dimensions (WxDxH) 17 in x 17.4 in x 1.7 in
- Weight 11.11 lbs
- TAA Compliant Yes
- Manufacturer Warranty Limited lifetime warranty
|
