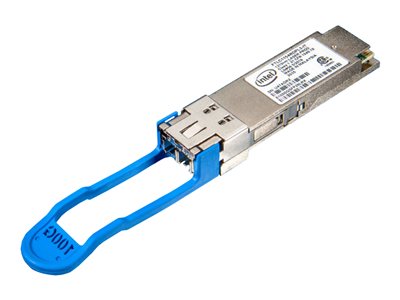

Intel - QSFP28 transceiver module - 100GbE
Intel - QSFP28 transceiver module - 100GbE
- Price:
$601.99
- Availability:
- Mfr #: E100GQSFP28LRX
- UNSPSC #: 43222612
- Item #: 009700153
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | MSA SFF-8679, MSA SFF-8636, MSA SFF-8661, Laser Class 1, FDA, IEC/EN 60825-1, IEC/EN 60950, RoHS2, BER 5E-5 |
Networking
| Connectivity Technology | Wired |
| Cabling Type | 100GBase-LR4 |
| Data Link Protocol | 100GbE |
| Fibre Channel | SMF |
| Data Transfer Rate | 100 Gbps |
| Optical Wave Length | 1294.53-1296.59 nm / 1299.02-1301.09 nm / 1303.54-1305.63 nm / 1308.09-1310.19 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Long range |
| Compliant Standards | IEEE 802.3bm |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 15 - 85% RH (non-condensing) |
General
| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
Expansion / Connectivity
| Interfaces | 1 x Ethernet 100GBase-LR4 x 4 |
Power
| Power Consumption Operational | 4.5 Watt |
