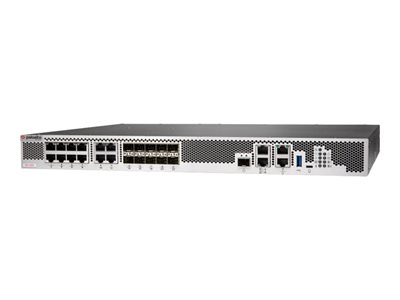

Palo PA-1410 - security appliance - lab unit
Palo PA-1410 - security appliance - lab unit
- Price:
$4,927.99
- Availability:
- Mfr #: PAN-PA-1410-LAB
- UNSPSC #: 43222502
- Item #: 010147744
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Internet of Things (IoT)
| Internet of Things (IoT) Compatible | Yes |
Miscellaneous
| MTBF | 24 years |
| Compliant Standards | FCC Class A certified, CB, cTUVus, VCCI Class A |
Networking
| Form Factor | Rack-mountable |
| Airflow Direction | Front to back airflow |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Network / Transport Protocol | IPSec, PPPoE, HTTP, IPv4, IPv6 |
| Routing Protocol | IGMPv2, IGMP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM |
| Performance | Firewall throughput (HTTP): 8.9 Gbps ¦ Firewall throughput (appmix): 6.8 Gbps ¦ Threat prevention throughput (HTTP): 3.3 Gbps ¦ Threat prevention throughput (appmix): 3.2 Gbps ¦ VPN throughput (IPSec): 4.6 Gbps |
| Capacity | New sessions per second: 100000 ¦ VLAN tags per device: 4094 ¦ VLAN tags per interface: 4094 ¦ Virtual systems (maximum): 6 ¦ Virtual systems (base): 1 |
| Features | Firewall protection, NAT support, VPN support, layer 7 switching, VLAN support, High Availability, URL filtering, static IP mode, dynamic IP mode, Data Loss Prevention (DLP), Pre-Shared Key (PSK), Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), Path Selection, machine learning, Stateless Address Autoconfiguration (SLAAC), NGFW appliance, 151W PoE power budget |
| Encryption Algorithm | MD5, SSL, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, 256-bit SHA, 512-bit SHA, 384-bit SHA, TLS 1.3, IKEv1, 3DES |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP) |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
General
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 17.2 in |
| Depth | 14.1 in |
| Height | 1.7 in |
| Weight | 15.5 lbs |
Processor / Memory / Storage
| Hard Drive | SSD 120 GB x 1 |
Expansion / Connectivity
| Interfaces | 8 x 1000Base-T - RJ-45 ¦ 4 x 1/2.5/5GBase-T (PoE) - RJ-45 ¦ 6 x 1000Base-T - SFP ¦ 4 x 1/10GBase-T - SFP/SFP+ ¦ 1 x 1000Base-T (management) ¦ 1 x console - RJ-45 ¦ 1 x console - micro-USB ¦ 1 x USB ¦ 1 x 10GBase-X (High Availability) |
Power
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 250 Watt |
| Power Provided | 450 Watt |
Software / System Requirements
| OS Provided | PAN-OS |
