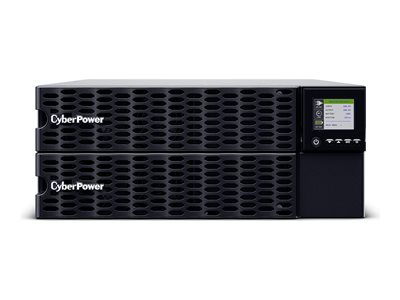

8KVA/8KW ONLINE UPS PF=1 4U
8KVA/8KW ONLINE UPS PF=1 4U
- Price:
$8,775.99
- Availability:
- Mfr #: OL8KRTHD
- UNSPSC #: 39121011
- Item #: 010245231
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Phone cable - external ¦ USB cable - external ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 300000 US Dollars |
| Features | Metal housing, high density, audible alarm, emergency power off, LCD display, internal bypass, GreenPower UPS Technology, overload protection, cold-start function, hot-swappable batteries, Smart Battery Management (SMB), Eco-Mode, rotatable LCD panel, double conversion, Human Interface Device (HID) support, Battery Equalization Technology, Impedance Tolerant EMI/RFI filtering, LED indicator, integrated backfeed protection |
| Compliant Standards | UL 1778, RoHS, FCC Part 15 A, CSA C22.2 No. 107.3 |
Networking
| Remote Management Interface | Ethernet, RS-232, USB |
| Remote Management Protocol | SNMP, HTTP |
Sustainability Information
| ENERGY STAR | Yes |
Dimensions & Weight
| Width | 17.1 in |
| Depth | 28.4 in |
| Height | 6.8 in |
| Weight | 156.99 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Battery
| Quantity | 16 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah 9 Ah |
| Run Time (Up To) | 11 min at half load ¦ 3.8 min at full load |
| Recharge Time | 4 hours |
| Transfer Time | 0 ms |
| Features | Sealed, hot-swappable |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Sound Emission | 35 dBA |
General
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 4U |
| Color | Black, unpainted |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 200-240 V |
| Input Voltage Range | AC 120 - 280 V |
| Frequency Provided | 50/60 Hz ± 0.25Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire |
| Power Output Connectors Details | 4 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R ¦ 1 x terminal block |
| Output Voltage | AC 200/208/220/230/240 V ± 2% - 50/60 Hz |
| Power Capacity | 8000 Watt / 8000 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 2430 Joules |
| Circuit Protection | Fuse, circuit breaker |
| Efficiency | 98% Eco mode |
| Power Factor (PF) | 1.0 |
| Total Harmonic Distortion (THD) | 3 % |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x management (Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
Dimensions & Weight (Shipping)
| Shipping Width | 23.6 in |
| Shipping Depth | 35.1 in |
| Shipping Height | 17.8 in |
| Shipping Weight | 200 lbs |
Software / System Requirements
| Software Included | PowerPanel Business Edition |
