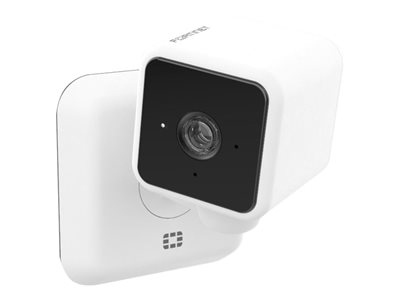

5MP MINI CUBE IP CAMERA 8M IR LED 3.16MM HDR WIFI BLE INDOOR USE

Need Help? Contact Zones Online support at 800.408.9663

Interfaces

Network Interface	Ethernet 10Base-T/100Base-TX, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth LE
Network Protocols	RTSP

Miscellaneous

Compliant Standards

FCC Class B certified, CB, ICES, IEEE 802.3af

Lens Construction

Type	Fixed focal
Focal Length	3.16 mm
Lens Iris	F/2.0
Horizontal Field of View (degree)	102
Vertical Field of View (degree)	72
Diagonal Field of View (degree)	132

Image Sensor

Type	5 MP CMOS 1/2.8"

Environmental Parameters

Min Operating Temperature	14 �F
Max Operating Temperature	104 �F
Relative Humidity (operating)	5 - 90% (non-condensing)

General

Device Type	Network surveillance camera
Audio Support	Yes: built-in speaker, two-way audio capability, built-in microphone
Form Factor	Cube
Camera Mount Type	Wall mount, ceiling mount, table mount
Connectivity Technology	Wired, wireless
Width	3.6 in
Depth	3.6 in
Height	5.4 in
Weight	8.46 oz

Camera

Type	Color - Day&Night - fixed - indoor
Digital Video Format	H.264, HEVC, H.265
Max Digital Video Resolution	1920 x 1080
Minimum Illumination	0.05 lux - color - F2.0 � 0.01 lux - B&W - F2.0
Infrared LEDs	Yes
Infrared Distance	26 ft
Digital Video Capture Resolution	1280 x 720, 640 x 480, 320 x 240, 1024 x 768, 1920 x 1080
Frame Rate (max)	30 frames per second
Features	Light sensor, High Dynamic Range (HDR), ONVIF (Profile S) support, ONVIF (Profile G) support, 3D digital noise reduction (DNR), ONVIF (Profile T) support, dimmable LED light ring

Expansion / Connectivity

Ports

LAN/power - RJ-45

Power

Power Requirements	DC 12 V / PoE Class 3
Power Device	10 Watt
