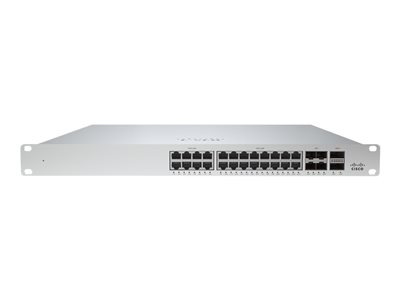

Meraki MS355-L3 Stck Cld-Mngd 24xmG UPOE Switch
Meraki MS355-L3 Stck Cld-Mngd 24xmG UPOE Switch
- Price:
$6,670.99
- Availability:
- Mfr #: MS355-24X2-HW
- UNSPSC #: 43222612
- Item #: 009809896
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| MTBF | 341,154 hours |
| Compliant Standards | CSA, C-Tick, IC, RoHS |
Dimensions & Weight
| Width | 19.1 in |
| Depth | 20.3 in |
| Height | 1.7 in |
| Weight | 13.01 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - lifetime - response time: next day |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable, desktop 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 1/2.5/5/10GBase-T + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ |
| Power Over Ethernet (PoE) | UPOE |
| Performance | Switching capacity: 640 Gbps ¦ Forwarding rate: 476 Mpps |
| Capacity | Tagged VLANs: 4096 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9600 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | Static IP routing, OSPFv2, IGMP, VRRP |
| Remote Management Protocol | SNMP |
| Authentication Method | RADIUS |
| Features | Crossover detection, auto-negotiation, E-mail alert, SMS alert, push notification, Syslog support, VLAN support, RSTP support, STP support, BPDU, UDLD, Loop Guard, Root Guard, Broadcast Storm Control, LLDP support, port mirroring, RBAC, ARP support, DAI, static routing, DHCP relay, DHCP server, flow control |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1w |
Expansion / Connectivity
| Interfaces | 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE ¦ 4 x 10Gbit LAN SFP+ uplink ¦ 2 x 40Gbit LAN QSFP+ uplink ¦ 2 x 100Gbit LAN QSFP28 stacking |
Power
| Power Device | Internal power supply - hot-plug |
| Power Provided | 740 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 1793 Watt |
