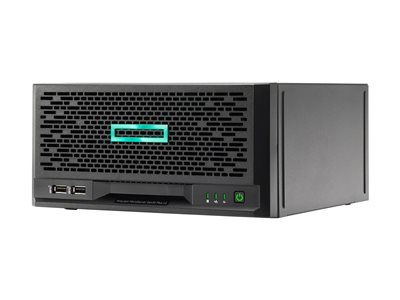

HPE ProLiant MicroServer Gen10 Plus v2 Entry - ultra micro tower - Pentium Gold G6405 4.1 GHz - 16 GB - no HDD

HPE ProLiant MicroServer Gen10 Plus v2 Entry - ultra micro tower - Pentium Gold G6405 4.1 GHz - 16 GB - no HDD

  • Price:
    $1,152.99
  • Availability:
  • Mfr #:  P54644-371
  • UNSPSC #:  43211501
  • Item #:  010069540
  • Add to Shopping List
  • cnet cat code #:  10010401
Need Help? Contact Zones Online support at 800.408.9663
Cache Memory
Installed Size L3 cache - 4 MB
Cache Per Processor 4 MB
Miscellaneous
Theft/Intrusion Protection Security lock slot (cable lock sold separately), padlock loop
Security Slot Type Kensington security slot
Compliant Standards FCC Class B certified, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC CFR47 Part 15, GB 9254, CNS 13438, K24, CISPR 32, EN 55032, K32
Networking
Ethernet Ports 4 x Gigabit Ethernet
Ethernet Controller Intel I350-AM4
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol SNMP 3, IPMI 2.0, SMASH CLP
Features Wake on LAN (WoL), ACPI support, PXE support
Dimensions & Weight
Width 9.6 in
Depth 9.6 in
Height 4.7 in
Weight 9.33 lbs
Hard Drive
Type No HDD
Graphics Controller
Graphics Processor Intel UHD Graphics 610
Video Interfaces VGA, DisplayPort
Monitor
Monitor Type None.
Storage Controller
Type 1 x RAID
Controller Interface Type SATA 6Gb/s
Storage Controller Name Intel VROC SATA Software RAID
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 1 year - on-site - response time: next business day
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90% RH (non-condensing)
Sound Emission 24 dBA
General
Type Server
Product Form Factor Ultra micro tower
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability 1-way
Internal Bays Qty 4
Localization Region: Asia Pacific
Processor / Chipset
CPU Intel Pentium Gold G6405
Clock Speed 4.1 GHz
Number of Cores Dual-Core
CPU Qty 1
Max CPU Qty 1
CPU Upgradability Upgradable
Processor Main Features Hyper-Threading Technology, Intel Smart Cache
CPU Socket LGA1200 Socket
Chipset Type Intel C252
Expansion / Connectivity
Bays 4 (total) / 4 (free) x internal 3.5" LFF
Slots 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile ¦ 1 (total) / 1 (free) x expansion slot (iLO Enablement Kit slot)
Interfaces 1 x VGA ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 - Type A (3 rear, 1 internal) ¦ 2 x USB 3.2 Gen 2 - Type A (2 in front) ¦ 1 x USB 2.0 - Type A (1 rear) ¦ 4 x LAN (Gigabit Ethernet)
Power
Device Type Power adapter
Voltage Required AC 100-240 V (50/60 Hz)
Power Provided 180 Watt
Operating System / Software
OS Provided No operating system
RAM
Installed Size 16 GB / 64 GB (max)
Technology DDR4 SDRAM - ECC
Effective Memory Speed 2666 MHz
Rated Memory Speed 3200 MHz
Form Factor DIMM 288-pin
Slots 2 (total) / 1 (empty)
Features Unbuffered
Configuration Features 1 x 16 GB
Optical Storage
Type No optical drive
