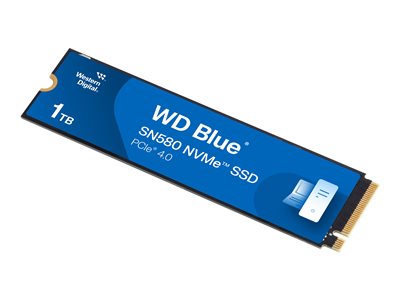

WD BLUE SN580 NVME SSD, 1TB
WD BLUE SN580 NVME SSD, 1TB
- Price:
$81.99
- Availability:
- Mfr #: WDS100T3B0E
- UNSPSC #: 43201830
- Item #: 010862707
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | BSMI, CAN ICES-3(B)/NMB3(B), FCC, KCC, Morocco, RCM, TUV, UL, VCCI |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 185 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (operating) | 5 g @ 10-2000 Hz |
| Vibration Tolerance (non-operating) | 4.9 g @ 7-800 Hz |
General
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | TCG Pyrite 2.01, ATA security, nCache 4.0 technology |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.19 oz |
Expansion & Connectivity
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 M key |
| Compatible Bay | M.2 2280 |
Performance
| SSD Endurance | 600 TB |
| Internal Data Rate | 4150 MBps (read) / 4150 MBps (write) |
| 4KB Random Read | 600000 IOPS |
| 4KB Random Write | 750000 IOPS |
Reliability
| MTBF | 1,500,000 hours |
Power
| Power Consumption | 65 mW (active) ¦ 3.3 mW (sleep) |
