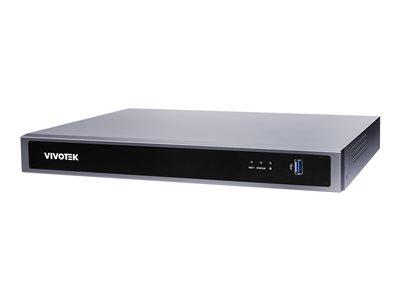

16-CHANNEL 2 BAY EMBEDDED POE AI NVR 4K CAMERA SUPPORTED, DECODING AB
16-CHANNEL 2 BAY EMBEDDED POE AI NVR 4K CAMERA SUPPORTED, DECODING AB
- Price:
$529.99
- Availability:
- Mfr #: ND9426P
- UNSPSC #: 52161545
- Item #: 011026702
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Connections
| Video Input Ports | RJ-45 x 2 |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Audio Input Ports | Mini-phone 3.5 mm x 1 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Alarm Ports | Alarm input x 4, alarm output x 1 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 2, USB 3.0 x 1 |
Networking
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | FTP, IPv4, IPv6, TCP/IP, HTTPS, HTTP, UPnP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, NTP |
| Features | Reset button, hardware watchdog, Disk S.M.A.R.T. Scan, ONVIF Profile S |
Dimensions & Weight
| Width | 14.4 in |
| Depth | 12.4 in |
| Height | 1.7 in |
| Weight | 6.13 lbs |
| Comments | Without HDD |
Environmental Parameters
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 0 - 95% |
General
| Device Type | NVR |
| Video Channels | 16 |
| Image Resolution | 3840x2160, 1920x1080, 1280x720 |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726 |
| OS Provided | Linux |
| Software Included (Y) | VIVOCloud App |
| Compliant Standards | NDAA, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS, IEEE 802.3at, IEEE 802.3af |
| Warranty | 3 years |
Hard Drive
| Quantity Supported | 2 |
| Interface | Serial ATA |
Power
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
Security DVR
| Frame Rate (Record) | 480 fps, 120 fps |
| Video Recording Resolution | 1920x1080, 3840x2160, 1280x720 |
| Display Modes | Full screen, 2 split screens, 4 split screens, 9 split screens, 5 split screens, 6 split screens, 7 split screens, 13 split screens, 16 split screens, 3 split screens |
| Playback Search | Alarm, date/time, event |
| Record Events | Motion detection, tamper detection, video loss |
| Networked | Yes |
| Features | Fisheye Dewarp function, Pan/Tilt/Zoom support, RAID 0 support, RAID 1 support, Cybersecurity Management, e-mail alarm notifications, motion detection, camera tampering, video loss detection, vehicle detection, human detection, Line Crossing Detection, intrusion detection, loitering detection, VCA Counting Solution support, Smart VCA Event Search, Smart Search II, Trend Micro IoT Security, Power over Ethernet (PoE) |
