CHELSIO SM100G-LR COMPATIBLE
CHELSIO SM100G-LR COMPATIBLE
- Price:
$444.99
- Availability:
- Mfr #: SM100G-LR-A
- UNSPSC #: 43201553
- Item #: 011178890
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | RoHS, MSA, SFF-8665, SFF-8636 |
| OEM Manufacturer Equivalent Part Number | Chelsio SM100G-LR |
Networking
| Connectivity Technology | Wired |
| Cabling Type | 100GBase-LR4 |
| Data Link Protocol | 100GbE |
| Data Transfer Rate | 103.1 Gbps |
| Optical Wave Length | 1295.56 nm / 1300.05 nm / 1304.58 nm / 1309.14 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), 4.3 dB power budget, Distributed Feedback Laser (DFB), transmit min -4.3 dBm / max 4 dBm, -8.6 dBm sensivity |
| Compliant Standards | IEEE 802.3b |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
General

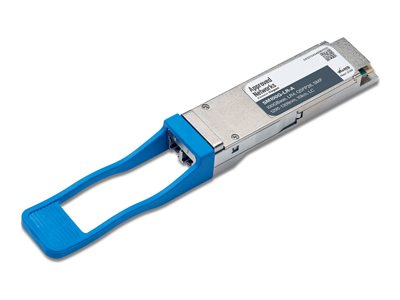

| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
Expansion / Connectivity
| Interfaces | 1 x Ethernet 100GBase-LR4 - LC single-mode female x 2 |
