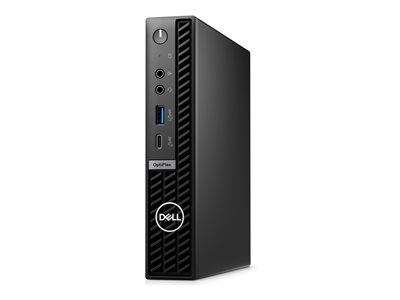

DELL OPTIPLEX MICRO PLUS THIN CLIENT CORE I3 13100T 8GB 1DIMM 256GB SS
DELL OPTIPLEX MICRO PLUS THIN CLIENT CORE I3 13100T 8GB 1DIMM 256GB SS
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
Miscellaneous
| Included Accessories | Vertical stand |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch |
| Security Slot Type | Kensington security slot |
| Pricing Type | Build To Stock (BTS) |
Networking
| Interface (Bus) Type | M.2 2230 |
| Ethernet Controller | Intel I219-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E) |
| Features | Dual stream (2x2) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
Dimensions & Weight
| Width | 1.4 in |
| Depth | 7 in |
| Height | 7.2 in |
| Weight | 2.36 lbs |
Keyboard
| Keyboard Name | Dell KM5221W Pro Wireless Keyboard and Mouse Combo |
| Connectivity | Wireless |
Audio Output
| Compliant Standards | High Definition Audio |
| Speakers Included | 1 |
Hard Drive
| Type | SSD - M.2 2230 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe), Class 35 |
Graphics Controller
| Graphics Processor | Intel UHD Graphics 770 shared video memory (UMA) |
| Video Interfaces | DisplayPort |
Monitor
| Monitor Type | None. |
Mouse
| Connectivity | Wireless |
Sustainability Information
| ENERGY STAR Certified | Yes |
| Carbon Footprint | 263 kg carbon emissions |
| Total CF/unit Standard Deviation (kg CO2e) | 59 |
| Manufacturing (kg CO2e) | 204 |
| Logistics (kg CO2e) | 10 |
| Use (kg CO2e) | 46 |
| EOL (kg CO2e) | 2 |
| Total Carbon w/o Use Phase (kg CO2e) | 216 |
| PAIA Version | 1.3.2 |
Storage Controller
| Type | 1 x SATA |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Input Device
| Type | Mouse (on selected markets only), keyboard (on selected markets only) |
General
| Type | Thin client |
| Bundled Services | 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| Product Form Factor | Micro |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Processor / Chipset
| CPU | Intel Core i3 (13th Gen) 13100T |
| Clock Speed | 2.5 GHz |
| Max Turbo Speed | 4.2 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel Q670 |
Expansion / Connectivity
| Slots | 2 (total) / 1 (free) x M.2 Card - 2230/2280 (for SSD) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.2 Gen 2 (1 front, 2 rear) (one of them with PowerShare) ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x audio line-out/line-in (1 in front) ¦ 3 x DisplayPort 1.4a (3 rear) |
Power
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 130 Watt |
Operating System / Software
| OS Provided | Windows 10 IoT Enterprise 2021 LTSC |
RAM
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
Optical Storage
| Type | No optical drive |
